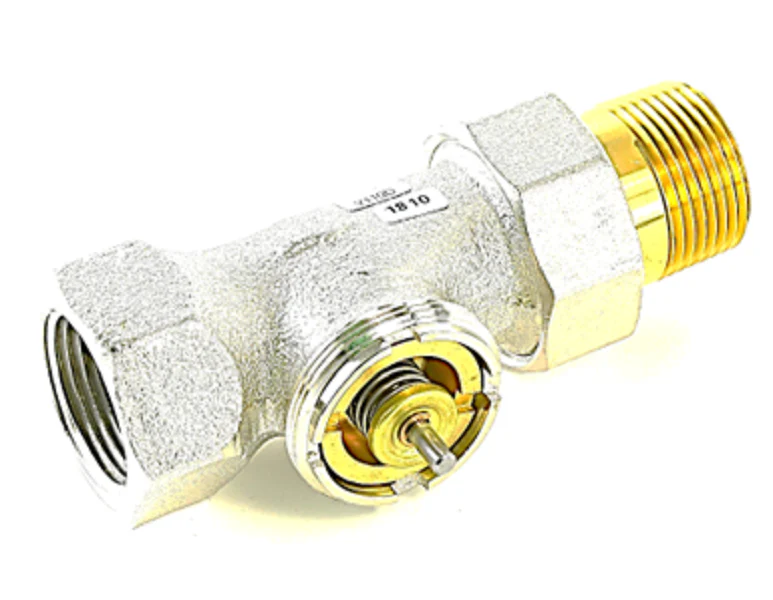

Resideo V110D1016 Valve
The Resideo V110D1016 is a professional-grade 1-inch high-capacity thermostatic radiator valve designed for demanding North American hydronic and steam systems. Featuring a nickel-plated bronze straight body, this valve is purpose-built for two-pipe installations, integrating seamlessly with T104 thermostatic actuators for precise, automatic temperature regulation. It handles high-flow requirements with a 7.0 Cv rating, supporting up to 193,000 BTU/hr for steam and maximum pressures of 150 psi for hot water and 15 psi for steam.
Engineered for long-term field reliability, the internal EPDM valve seat disc ensures positive, bubble-tight shutoff. Maintenance is simplified through a cartridge-based design; all internal working parts are accessible and can be replaced using the MT110C1011 service tool while the system remains pressurized and in-line. This straight body radiator valve meets ASHRAE Standard 102-1989, making it a standard specification for contractors managing large radiators, convectors, or baseboard heating units where consistent, high-volume flow control is critical.
Key Benefits
- Compatibility: Optimized specifically for T104 series actuators to provide reliable room temperature modulation.
- In-Line Serviceability: Replace internal components under full system pressure with the MT110C cartridge tool, reducing labor and downtime.
- High Capacity Performance: High 7.0 Cv flow rating suitable for large-scale residential and commercial heating units.
- Durable Construction: Heavy-duty nickel-plated bronze body resists corrosion and withstands temperatures up to 248°F.
- Tight Shutoff: Resilient EPDM disc prevents leakage in both hot water and low-pressure steam applications.
Common Questions
Can the V110D1016 be used in one-pipe steam systems?
No, this valve is specifically designed for two-pipe systems. It requires a return line to function correctly with the modulating flow of hot water or steam.
What is the maximum pressure for steam application?
The Resideo V110D1016 is rated for a maximum of 15 psi in steam systems to ensure the integrity of the internal EPDM seals.
Is the actuator included with this valve body?
This is the valve body only. A T104 thermostatic actuator must be purchased separately to enable automatic temperature control.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
