Resideo V110D1000 Body

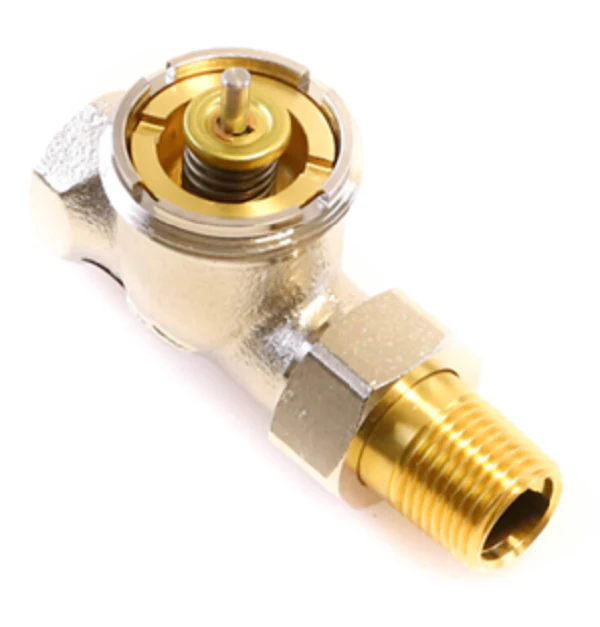

The Resideo V110D1000 is an industrial-grade, 1/2" threaded straight body thermostatic radiator valve engineered for high-capacity North American hydronic and steam systems. Designed for seamless integration with T104 thermostatic actuators, this valve body facilitates precise modulating temperature control in two-pipe heating configurations. It features a robust nickel-plated bronze radiator valve construction with an EPDM valve seat disc, ensuring a bubble-tight shutoff for both hot water and low-pressure steam applications. For service efficiency, the internal cartridge can be replaced while the system remains under pressure using the MT110C1011 service tool. With a high flow capacity of 4.6 Cv, the V110D1000 handles 127,000 BTU/hr for steam, making it the standard choice for free-standing radiators and convectors requiring reliable automatic temperature regulation without frequent maintenance downtime.
Key Benefits- High Capacity Performance: Optimized with a 4.6 Cv rating to meet the demanding flow requirements of North American commercial and residential heating units.
- In-Line Serviceability: Replaceable cartridge design allows for maintenance while the valve is in-line and under pressure, reducing system drain-down time.
- Versatile Media Compatibility: Rated for hot water systems up to 150 psi and steam systems up to 15 psi, providing flexibility across different hydronic environments.
- T104 Actuator Integration: Specifically designed to work with non-electric T104 series actuators for high-precision autonomous room temperature control.
- Durable Construction: The nickel-plated bronze body resists corrosion and mineral buildup, extending the service life of the straight pattern valve.
Is the V110D1000 compatible with other actuators besides the T104?
This valve body is purpose-built for the Resideo T104 series. Using third-party actuators may result in improper stroke length or seat pressure, compromising the modulating flow control.
Can I use this valve on a one-pipe steam system?
No, the V110D1000 is strictly for two-pipe systems. One-pipe steam systems require specialized air vents for temperature control rather than modulating inlet valves.
What is the maximum operating temperature for this valve?
The domestic and industrial thermostatic radiator valve (TRV) body is rated for a maximum fluid temperature of 248°F (120°C).
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
