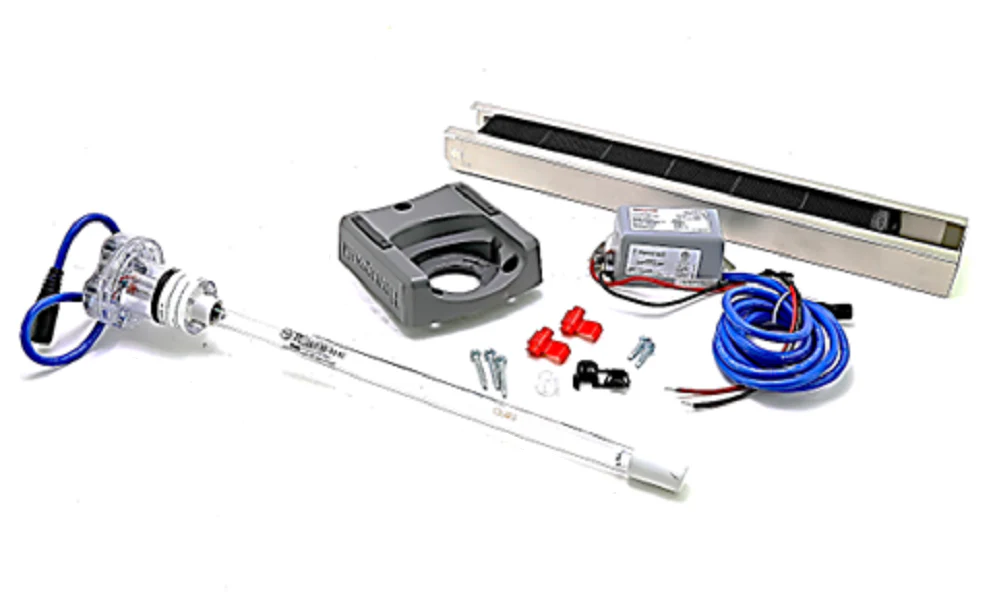

Resideo UV2400U5000 UV Air Purifier
Professional contractors recognize the Resideo UV2400U5000 as a critical component for whole-home indoor air quality and evaporator coil maintenance. This 24VAC ultraviolet air purifier utilizes Advanced Photocatalytic Oxidation (PCO) technology, combining a germicidal UV-C lamp with AirBright odor absorption activated carbon cells. By installing this unit in the supply duct—ideally 3–5 inches above the A-coil—technicians can effectively inhibit mold growth and reduce volatile organic compounds (VOCs), which maintains system static pressure and heat transfer efficiency. Operating at 0.8 Amps and 16 Watts, the ballast-driven system features SnapLamp technology for streamlined bulb replacement without entire housing removal. This HVAC UV light installation is designed for continuous operation, providing 360-degree surface treatment and airborne germicidal irradiation to neutralize household odors and biological contaminants at the source.
Key Benefits- Advanced PCO Technology: Combines UV-C irradiation with carbon cells to neutralize odors and chemical vapors instead of masking them.
- Coil Efficiency: Prevents bio-organic buildup on cooling coils, maintaining optimal airflow and system performance.
- SnapLamp Integration: Features a detachable lamp handle that simplifies maintenance and reduces labor time during annual service calls.
- Versatile Mounting: Supports both internal and external duct mounting configurations with included foam gaskets and self-tapping hardware.
- Low Voltage Operation: Designed for standard 24VAC systems, making it compatible with most residential air handlers and furnaces.
Where is the optimal placement for the UV2400U5000 in an HVAC system?
For maximum effectiveness in surface treatment, mount the unit on the supply side duct, approximately 3 to 5 inches above the evaporator coil. This ensures the UV-C light has a direct line of sight to the coil fins to prevent microbial growth.
Does the AirBright carbon filter require frequent replacement?
No, the AirBright odor absorber is designed to be regenerated by the UV light itself. While the UV lamp requires annual replacement to maintain germicidal intensity, the carbon cells continue to function without a separate replacement schedule.
Can this unit be powered directly from the furnace transformer?
The unit draws 0.8 Amps at 24VAC. Before wiring, verify that the existing system transformer has sufficient VA capacity to handle both the air purifier and the standard control circuit (thermostat, gas valve, contactor) to avoid low-voltage brownouts.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
