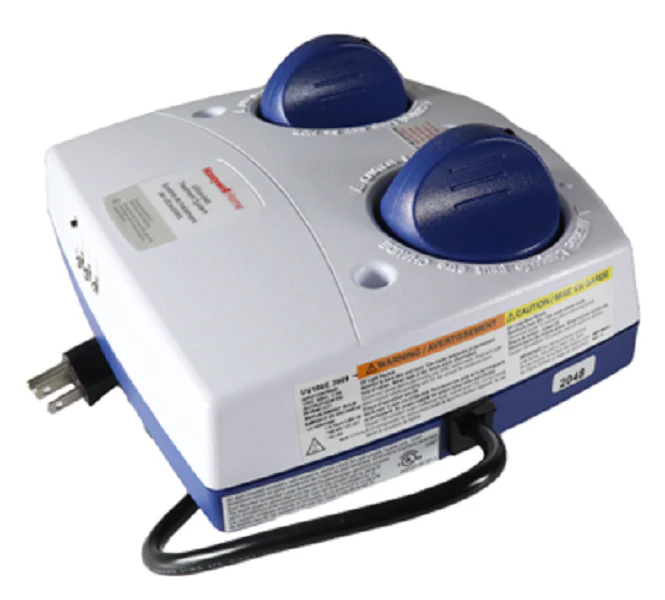

Resideo UV100E2009 System
As a seasoned technician, I recommend the Resideo UV100E2009 System for contractors looking to provide high-efficiency UV air treatment in residential return air ducts. This dual lamp UV system utilizes two 36-watt lamps (72W total) to maximize the intensity of UV-C energy, specifically engineered to reduce airborne bacteria and neutralize surface mold. Unlike many entry-level units, this model features SmartLamp control technology, which employs an integrated airflow sensor to engage the lamps only when the HVAC fan is operational. This precision logic significantly extends the functional life of the UV replacement bulbs and lowers overall power consumption for the homeowner. The sealed unit design ensures a safe installation by preventing accidental 120Vac exposure or direct UV-C contact during service. Optimized for 120V applications, the Resideo UV100E2009 operates reliably within an internal duct temperature range of 30°F to 140°F, making it a robust choice for varied climate zones and heavy-duty indoor air quality installations.
Key Benefits for HVAC Professionals
- Dual-Lamp Performance: Employs two high-output bulbs to provide high-efficiency disinfection of the air stream.
- SmartLamp Logic: Onboard sensors calibrate to the system's airflow, activating UV sterilization only when needed.
- Maintenance Efficiency: Features a SnapLamp handle for rapid, tool-less bulb replacement and a light pipe indicator for safe operational status checks.
- Ozone-Free Operation: Targeted UV-C wavelengths provide air purification without generating harmful ozone byproducts.
- Safety Interlock: Design prevents lamp activation unless the base is securely mounted to the ductwork, protecting the installer.
Common Questions About the UV100E2009
Where is the best location to install the dual lamp UV system?
For maximum effectiveness in reducing airborne bacteria, mount the unit on the flat surface of the return air duct. Ensure there is at least 8 inches of width and sufficient depth to accommodate the full length of the 36-watt lamps.
Can this unit be used for coil irradiation?
While this model is primarily configured for return air treatment, its dual-lamp intensity is highly effective at preventing micro-organism growth. For dedicated coil surface treatment, verify internal clearance for the dual-lamp configuration.
How does the airflow sensor calibrate?
After restoring power, the Resideo UV100E2009 requires a 10-minute calibration period. During this time, the HVAC fan must remain off to ensure the sensor accurately detects future static pressure changes.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
