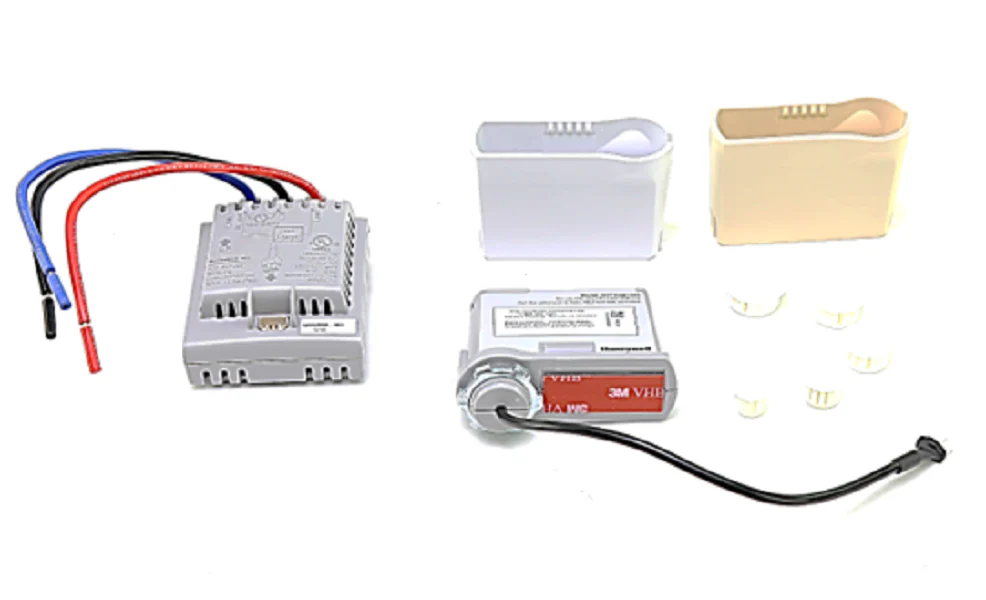

Resideo TLM1110R1000 Interface Module
The Resideo TLM1110R1000 Interface Module is a robust RedLINK Enabled solution designed for professional contractors managing line voltage electric heating systems. This Equipment Interface Module (EIM) eliminates the need to run new wires through finished walls, allowing for the seamless relocation or upgrade of electric baseboard heaters, convectors, and fan-forced heaters. Engineered for 100-240 Vac applications, the TLM1110R1000 handles a maximum load of 12.5 A (resistive) and features SPST switching logic. Its wide operating temperature range of -4°F to 140°F and 5-95% non-condensing operating humidity ensure reliable performance in demanding environments. This wireless interface module integrates easily with EConnect™ systems and RedLINK thermostats to provide precise temperature control exactly where the customer needs it, overcoming the sensing limitations of built-in unit thermostats. The vertical mount design and Resideo RedLINK protocol ensure interference-free communication with up to 8 EIMs per thermostat for high-capacity applications.
Key Benefits- Wireless RedLINK Integration: Connects electric heat equipment to RedLINK thermostats without invasive wiring or remodeling.
- High Load Capacity: Rated for 12.5A at 240V, supporting baseboard heaters and fan-forced units up to 3000W.
- Versatile Installation: Features a vertical mount design that can be installed directly onto the heater or hidden in a junction box.
- Reliable Performance: Built to withstand operating temperatures from -4°F to 140°F, ideal for varied climate zones.
- System Scalability: Compatible with Honeywell Home EConnect series and allows multiple units to be synchronized for larger rooms.
Is the TLM1110R1000 compatible with 120V and 240V systems?
Yes, this interface module is rated for 100-240 Vac, making it suitable for both standard 120V and heavy-duty 240V electric heating circuits.
How do I pair the TLM1110R1000 with a RedLINK thermostat?
The pairing sequence is critical: first, link the TLM1110R1000 EIM to the RedLINK-enabled thermostat. If using a RedLINK Internet Gateway, the gateway connects to the thermostat/EIM system to provide remote access.
Can I use one thermostat to control multiple TLM1110R1000 modules?
Yes, you can pair up to eight TLM1110R1000 modules to a single EConnect™ wireless thermostat for synchronized control of multiple heaters in a single zone.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
