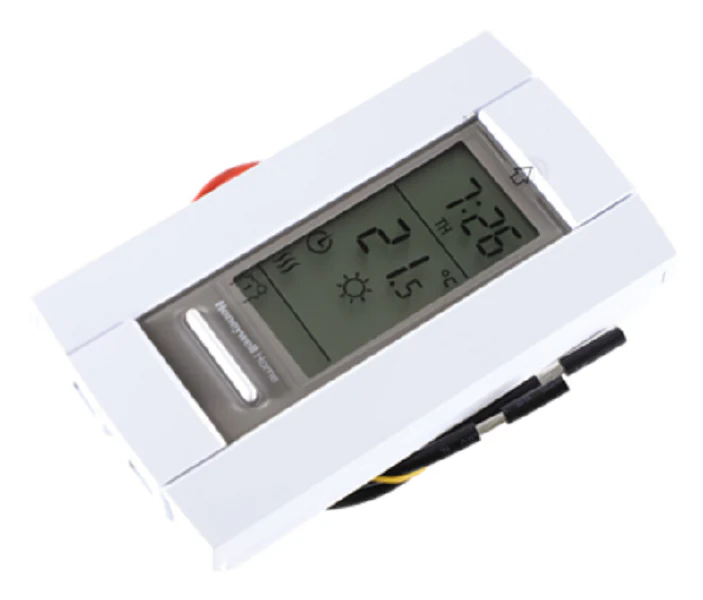

Resideo TL8130A1005 Thermostat
The Resideo TL8130A1005, part of the LineVoltPro 8000 series, is a high-performance 7-day programmable electric heat thermostat designed for precise control of electric baseboards, convectors, and radiant ceilings. Engineered with SPST switching action and a rugged 16.7 Amp maximum load capacity, this unit handles up to 4000 Watts at 240Vac or 3470 Watts at 208Vac. The 2.67 square inch backlit display provides clear visibility of the 40-86 degree temperature setting range, while the Proportional-Integral (PI) controller minimizes temperature swings by calculating the exact pulse rate required to maintain setpoint stability. This vertical mounting unit is a reliable solution for contractors requiring line voltage thermostats that balance high-wattage capacity with energy-efficient heating schedules. Direct four-wire installation ensures a secure connection for 1-stage heat applications.
Key Technical Benefits
- High Load Capacity: Rated for 16.7A resistive loads, making it suitable for high-wattage electric resistance heating systems.
- Precision Pulse Control: Uses electronic PI control to eliminate the clicking noise and temperature fluctuations common in mechanical bimettalic stats.
- Flexible Programming: 7-day individual scheduling with 4 periods per day optimizes HVAC energy management for residential or light commercial zones.
- Early Start Function: Integrated logic ensures the space reaches the desired temperature exactly at the programmed time.
- Battery-Free Backup: Maintains programmed settings during power outages without the need for periodic battery replacement.
Common Questions
Is the Resideo TL8130A1005 compatible with 120V systems?
No, this model is specifically designed for 208V and 240V line voltage applications. For 120V circuits, a different LineVoltPro model must be specified.
Does this thermostat require a neutral wire?
This is a four-wire/double-pole installation requiring two line inputs and two load outputs. Always verify the local electrical code for SPST switching requirements in your jurisdiction.
Can I use this to control a fan-forced heater?
The TL8130A1005 is optimized for baseboards and radiant heat. For fan-forced units, ensure the cycle rate is adjusted to prevent excessive wear on the fan motor, as the default PI logic is tuned for silent convection.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $117.12
-65%$117.12
$40.99Resideo TL8130A1005 Thermostat
The Resideo TL8130A1005, part of the LineVoltPro 8000 series, is a high-performance 7-day programmable electric heat thermostat designed for precise control of electric baseboards, convectors, and radiant ceilings. Engineered with SPST switching action and a rugged 16.7 Amp maximum load capacity, this unit handles up to 4000 Watts at 240Vac or 3470 Watts at 208Vac. The 2.67 square inch backlit display provides clear visibility of the 40-86 degree temperature setting range, while the Proportional-Integral (PI) controller minimizes temperature swings by calculating the exact pulse rate required to maintain setpoint stability. This vertical mounting unit is a reliable solution for contractors requiring line voltage thermostats that balance high-wattage capacity with energy-efficient heating schedules. Direct four-wire installation ensures a secure connection for 1-stage heat applications.
Key Technical Benefits
- High Load Capacity: Rated for 16.7A resistive loads, making it suitable for high-wattage electric resistance heating systems.
- Precision Pulse Control: Uses electronic PI control to eliminate the clicking noise and temperature fluctuations common in mechanical bimettalic stats.
- Flexible Programming: 7-day individual scheduling with 4 periods per day optimizes HVAC energy management for residential or light commercial zones.
- Early Start Function: Integrated logic ensures the space reaches the desired temperature exactly at the programmed time.
- Battery-Free Backup: Maintains programmed settings during power outages without the need for periodic battery replacement.
Common Questions
Is the Resideo TL8130A1005 compatible with 120V systems?
No, this model is specifically designed for 208V and 240V line voltage applications. For 120V circuits, a different LineVoltPro model must be specified.
Does this thermostat require a neutral wire?
This is a four-wire/double-pole installation requiring two line inputs and two load outputs. Always verify the local electrical code for SPST switching requirements in your jurisdiction.
Can I use this to control a fan-forced heater?
The TL8130A1005 is optimized for baseboards and radiant heat. For fan-forced units, ensure the cycle rate is adjusted to prevent excessive wear on the fan motor, as the default PI logic is tuned for silent convection.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
