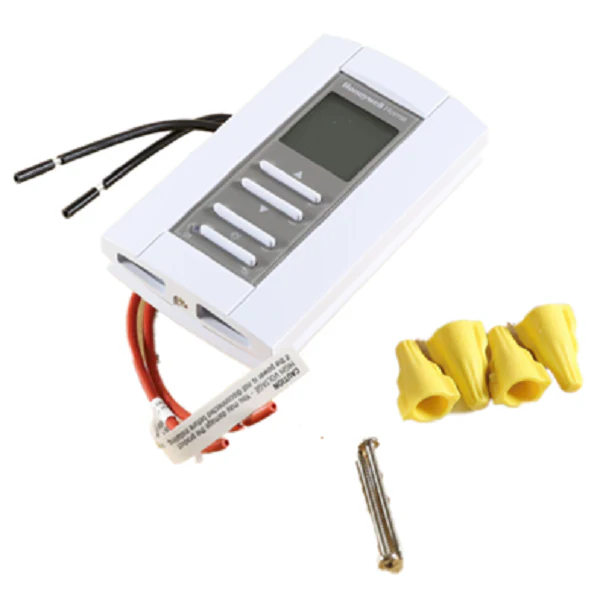

Resideo TL7235A1003 Thermostat
The Resideo TL7235A1003 Line VoltPro 7000 is an industrial-grade non-programmable electric heat thermostat engineered for precise control of electric baseboards, convectors, and fan-forced heaters. This electronic line voltage thermostat features a DPST switching action, ensuring a true positive off position by breaking both sides of the line for increased safety during maintenance. Operating on a 208/240V line voltage system, it handles a 15-amp maximum load, delivering up to 3600 watts at 240Vac. The unit utilizes advanced electronic sensing to maintain +/- 1 degree accuracy, effectively eliminating the temperature swings common in traditional mechanical bi-metal thermostats. Designed with a vertical mount configuration and finished in premier white, the TL7235A1003 provides a clean aesthetic for commercial and residential retrofits. Its large, back-lit display ensures clear visibility of the 40-86 degree Fahrenheit setpoint range, making it a reliable solution for high-wattage electric heating control applications where simplicity and temperature stability are the primary requirements.
- Precision Temperature Control: Maintains tight tolerance within 1 degree to optimize energy consumption and occupant comfort.
- High Capacity Switching: Rated for up to 3600W at 240V, making it suitable for large baseboard runs and high-output fan heaters.
- Double Pole ST Action: Provides a mechanical "Off" setting that breaks both L1 and L2 lines for safer operation.
- Silent Operation: Electronic switching eliminates the loud "clicking" noise associated with conventional relays.
- Easy Installation: Standard vertical mounting bracket and color-coded lead wires streamline the field wiring process for contractors.
Common Technical Questions
Can the Resideo TL7235A1003 be used with 120V systems?
No, this model is specifically designed for 208/240V AC applications. For 120V requirements, a different LineVoltPro series model must be specified to ensure proper voltage compatibility and board function.
Is this thermostat compatible with inductive loads like circulating pumps?
The TL7235A1003 is optimized for resistive loads such as electric baseboards. If you are controlling an inductive load, verify that the total volt-amps do not exceed the rated 15-amp capacity to prevent premature contact wear.
Does this unit retain its settings during a power outage?
Yes, because this is a non-programmable model, the setpoint is maintained electronically. Once power is restored, the unit resumes operation at the last configured temperature without technician intervention.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
