Resideo TK30PV100SFM Tank Kit

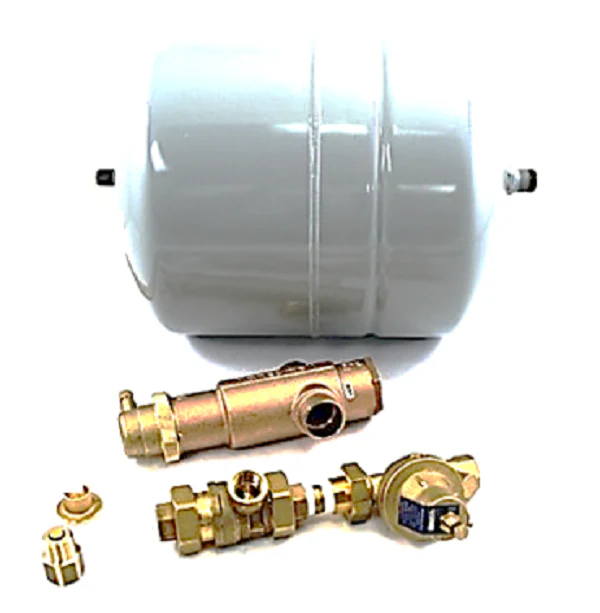

The Resideo TK30PV100SFM is a comprehensive boiler trim kit designed for efficient hydronic system installation and boiler change outs. This professional-grade package streamlines the setup by integrating key components into a single SKU, ensuring compatibility and reducing field labor. The kit features a TK300-30 expansion tank with a 4.4-gallon capacity and a butyl/EPDM diaphragm, which offers superior air retention compared to standard rubber. System air is managed by the high-performance PV100S SuperVent air eliminator with 1-inch sweat connections, designed to purge micro-bubbles for optimal heat transfer. For pressure regulation and backflow protection, the kit includes the FM911 boiler fill valve combo. A SCV-050 service check valve is pre-installed to simplify expansion tank replacement without requiring a full system drain. Built for demanding duty, the assembly handles 100 psi maximum operating pressure and temperatures up to 240°F, providing a reliable solution for residential and commercial heating loops.
Key Benefits- All-in-One Solution: Eliminates the need to source individual boiler trim components, ensuring a faster hydronic system installation.
- Advanced Air Elimination: The SuperVent PV100S utilizes a patented design to remove trapped air, preventing pump cavitation and noise.
- Enhanced System Protection: Integrated FM911 backflow preventer prevents cross-contamination and maintains constant system pressure.
- Simplified Maintenance: The service check valve allows for tank swapping while the system remains pressurized.
- Durable Construction: Features a deep-drawn steel expansion tank and a high-grade brass backflow fill valve for long-term reliability.
Is this kit compatible with 1-inch copper piping?
Yes, the PV100S air eliminator features 1-inch sweat (C) connections, making it a direct fit for standard 1-inch copper hydronic lines.
Does the FM911 valve allow for manual system filling?
The FM911 is a DialSet boiler fill and dual-check atmospheric backflow preventer that provides automatic filling functionality to maintain the preset system pressure.
Can the expansion tank be replaced without draining the boiler?
Yes, because this kit includes the SCV-050 service check valve, you can isolate and remove the expansion tank for maintenance while the rest of the loop stays full.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
