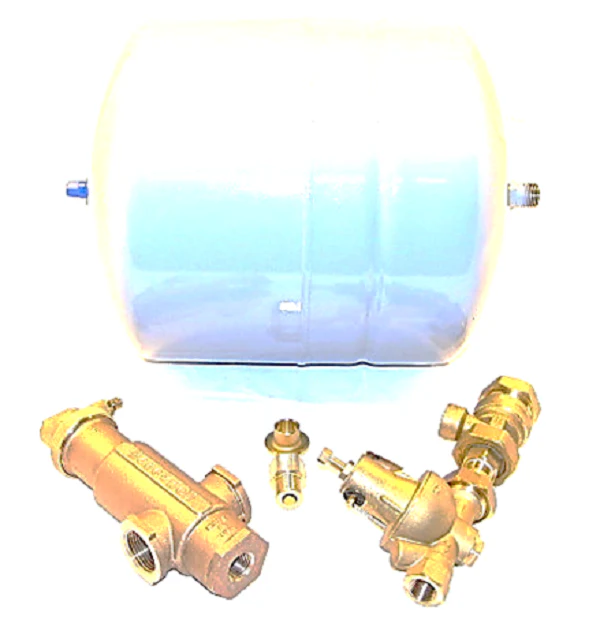

Resideo TK30PV100FM Tank Kit
When you are performing a boiler change-out, efficiency on the job site is paramount. The Resideo TK30PV100FM Tank Kit provides a comprehensive, professional-grade solution to hydronic system pressure management and air elimination. This kit simplifies the installation process by bundling the field-proven Honeywell Home TK300-30 expansion tank with a high-performance 1 inch NPT SuperVent air eliminator. Designed for closed-loop hydronic heating and chilled water systems, the internal butyl/EPDM diaphragm in the deep-drawn steel tank offers superior air/water separation compared to natural rubber alternatives. The integrated FM911 boiler fill valve and backflow preventer ensure stable system pressure while protecting the potable water supply. With a 4.4-gallon total volume and a 100 PSI maximum operating pressure, this 1-inch FNPT kit allows for high-flow microbubble removal, reducing circulator damage and eliminating the gurgling noises that lead to service callbacks.
- Complete Boiler Trim Package: Bundles the expansion tank, air eliminator, fill valve, and service check valve to streamline inventory and installation.
- Advanced Air Elimination: The SuperVent microbubble concentrator is engineered to remove stagnant air pockets and microscopic bubbles without manual bleeding.
- Durable Pressure Control: The TK300-30 tank is factory pre-charged to 12 PSIG and features a rugged steel construction for long-term system stability.
- Flexible Orientation: The 360-degree adjustable vent top collar ring on the SuperVent allows for easy positioning in tight mechanical rooms.
- System Protection: Includes an FM911 combination valve with a backflow preventer to maintain consistent pressure and prevent system contamination.
Common Questions
What is the maximum operating temperature for this kit?
The Resideo TK30PV100FM is rated for a maximum operating temperature of 240°F (115°C), making it suitable for standard and high-efficiency hydronic boiler applications.
Does this kit include a service check valve for the expansion tank?
Yes, the kit includes an SCV-050 service check valve, which allows for the replacement or maintenance of the expansion tank without needing to drain the entire heating system.
What are the connection sizes for the components?
The main SuperVent air eliminator features 1-inch FNPT threaded connections, while the expansion tank typically utilizes a 1/2-inch MNPT connection for integration into the system trim.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
