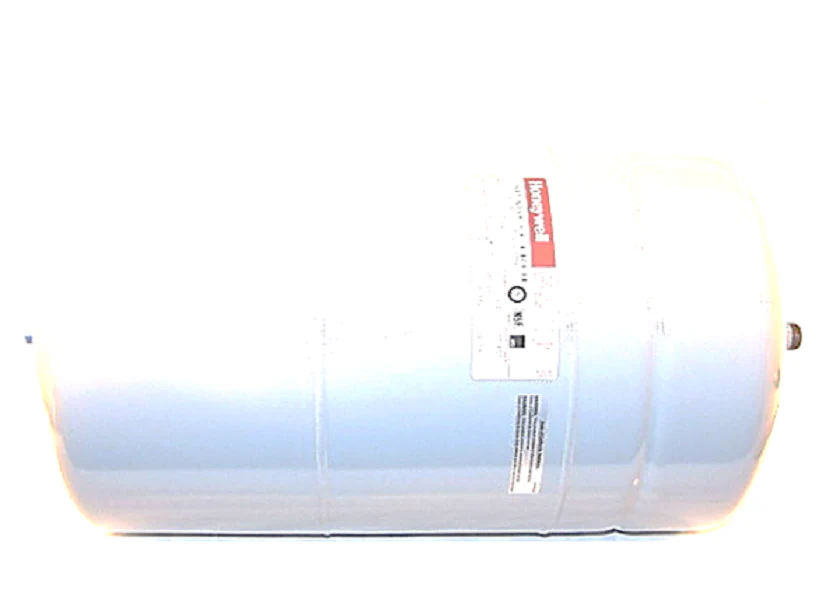

Resideo TK300-60 Tank
The Resideo TK300-60 is a high-performance hydronic expansion tank designed to manage thermal expansion in closed-loop heating systems and solar applications. Engineering-grade deep-drawn steel construction and a rugged Butyl/EPDM diaphragm provide a reliable barrier between system water and the air cushion, preventing waterlogging and maintaining consistent system pressure. This 7.6-gallon Sparco tank is factory pre-charged to 12 PSIG and features a 1/2-inch male NPT connection for direct installation onto an air purger or eliminator. Rated for a maximum operating pressure of 100 PSI and temperatures up to 240°F, it is a versatile drop-in replacement for the Watts ETX-60 or Amtrol #60. For veteran contractors, the welded tank design ensures a leak-free service life compared to standard clamped models, making it a staple for maintaining the safety and efficiency of residential boiler systems.
Key Benefits- Superior Diaphragm Technology: The heavy-duty Butyl/EPDM diaphragm is engineered to be nine times less permeable than natural rubber, significantly reducing the frequency of field re-charging.
- Durable Construction: Features a deep-drawn steel shell with a welded seam, providing superior structural integrity under high-temperature hydronic cycles.
- Optimized Pressure Control: Efficiently absorbs expanded water volume to keep system pressure below safety relief valve settings, protecting critical boiler components.
- Contractor-Friendly Installation: The 1/2" MNPT connection allows for seamless integration into existing pump suction or air elimination headers.
What is the factory pre-charge pressure for the TK300-60?
The unit comes pre-pressurized to 12 PSIG. For optimal performance, always verify that the tank charge matches the static system pressure at the tank's location before filling the system.
Can this tank be used in potable water systems?
No, the Resideo TK300-60 is strictly for closed-loop hydronic heating and solar systems. It is not rated for potable water applications due to lack of an internal liner required for domestic drinking water.
Where is the recommended mounting location?
For best results and to prevent pump cavitation, install the tank on the suction side of the circulator pump, ideally connected to a Resideo SuperVent or air purger.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
