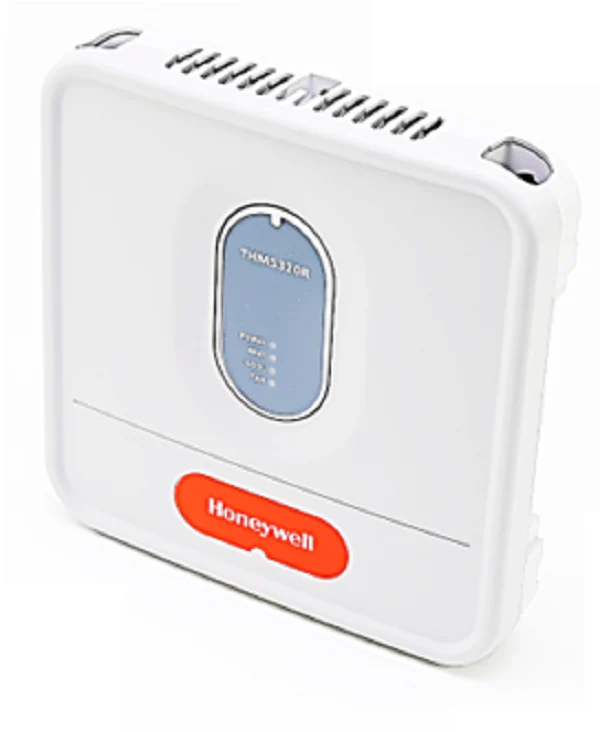

Resideo THM5320R1000 Module
The Resideo THM5320R1000 is an essential RedLINK Equipment Interface Module (EIM) designed for professional HVAC installers who need to consolidate complex system wiring at the equipment rather than the thermostat. This robust Honeywell Home EIM allows you to manage up to 3 Heat/2 Cool heat pump systems or up to 2 Heat/2 Cool conventional applications. By utilizing 900 MHz RedLINK wireless technology, this module enables the relocation of a thermostat or a full equipment upgrade without the labor-intensive process of pulling new wires through walls.
Engineered for high-performance reliability, the THM5320R1000 features quick-connect terminal blocks for pushed-in wire retention and a dedicated return air sensor input for backup control. The unit operates on a standard 18-30Vac power supply and includes onboard LED status indicators to streamline troubleshooting of power and communication links. It is fully compatible with Wireless FocusPRO® thermostats (TH6320R1004 or TH5320R1002), facilitating a seamless wireless bridge between the user interface and the air handler or furnace.
- Wireless Integration: Eliminates the need for a C-wire or multi-conductor thermostat cable by using RedLINK wireless communication.
- Versatile Staging: Supports versatile configurations including dual fuel and multi-stage systems up to 3H/2C.
- Hardened Design: Features an operating humidity range of 5-95% RH non-condensing and a gray utility finish.
- Diagnostics: Includes clear LEDs to confirm HVAC system communication and power status at a glance.
Common Questions
Does this module require a separate bridge for internet access?
Yes, to enable remote monitoring via the Total Connect Comfort app, this module must be paired with a RedLINK Internet Gateway.
Can I use this with a third-party Wi-Fi thermostat?
No, the THM5320R1000 uses a proprietary 900 MHz frequency and is specifically designed to communicate with RedLINK-enabled wireless FocusPRO or VisionPRO thermostats.
How do I handle a lost connection between the thermostat and EIM?
The dedicated return air sensor input allows the system to maintain setpoint control based on air temperature at the return duct if the wireless signal is interrupted.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
