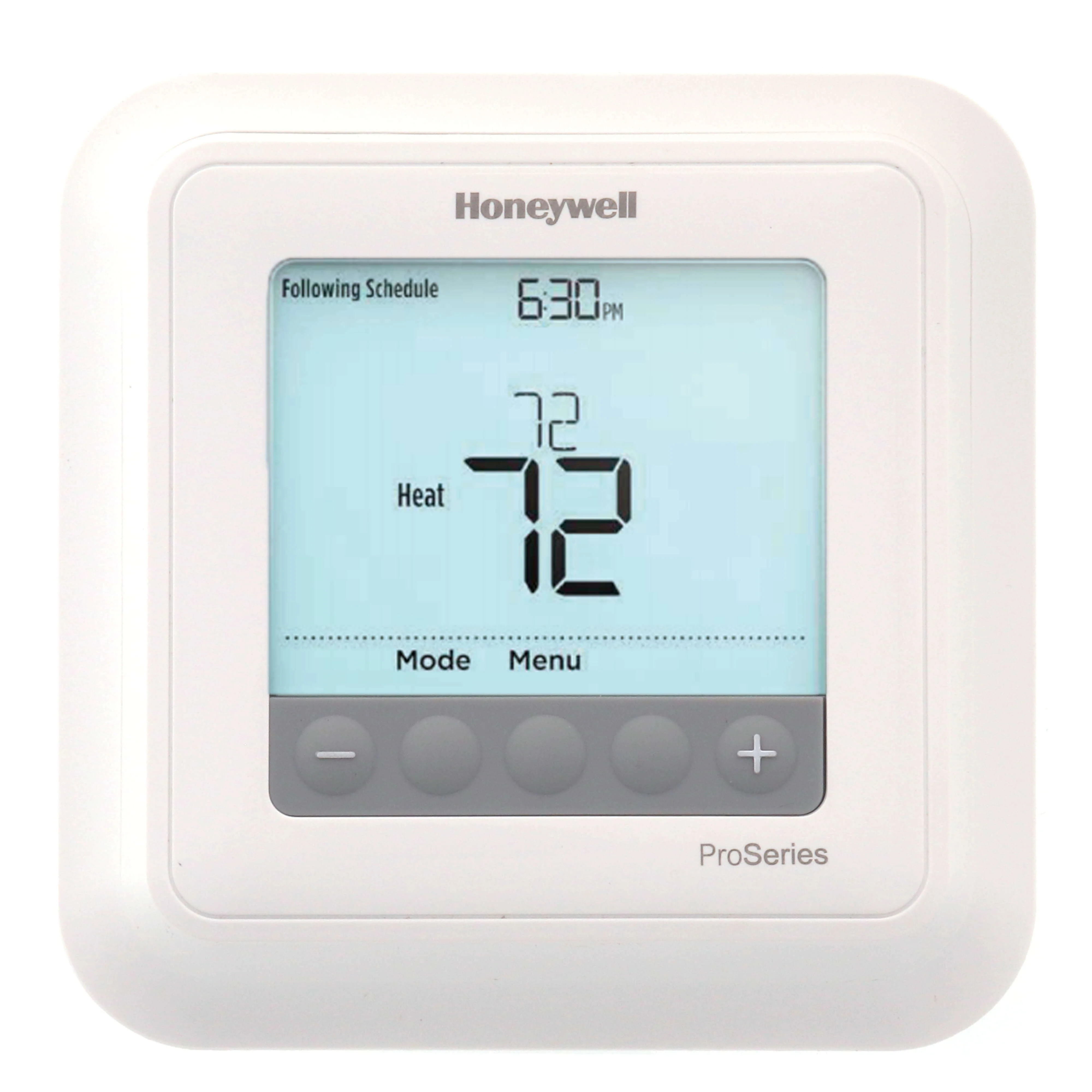

Resideo TH6100AF2004 Tstat
The Resideo TH6100AF2004 T6 Pro Hydronic Programmable Thermostat is a purpose-built solution for controlling radiant floor heating systems and high-mass hydronic applications. This 1H/1C heat pump or 1H/1C conventional system controller includes a remote slab sensor (10k ohm) to monitor floor temperature directly, preventing thermal overshoot and protecting sensitive flooring materials like engineered wood or tile. It features 7-day, 5-2, or 5-1-1 programming, allowing for precise scheduling to capitalize on off-peak energy rates while maintaining consistent slab temperatures. The UWP mounting system ensures a standardized installation footprint, simplifying the swap-out process for contractors in the field. Designed for 24 VAC systems, this thermostat supports dual-fuel setups and provides adjustable differential temperature settings to optimize cycle rates. This unit is essential for maintaining the thermal equilibrium necessary for efficient hydronic radiant heat performance in residential and light commercial environments.
Key Benefits- Floor Temperature Limiting: Prevents damage to flooring by setting absolute maximum and minimum slab temperature limits via the included 10k ohm sensor.
- Advanced Response Technology: Learns heat-up and cool-down times to ensure the space reaches the setpoint exactly at the programmed time.
- Universal Mounting: Utilizes the Honeywell Home UWP backplate, allowing for easy upgrades without rewiring or wall repairs.
- Flexible Programming: Supports non-programmable mode or full 7-day scheduling to meet specific homeowner comfort requirements.
- Battery or C-Wire Power: Offers dual-power options, though a common wire (C-wire) is recommended for consistent backlight and performance.
Can this thermostat control both ambient air and floor temperature?
Yes, the TH6100AF2004 can be configured to sense ambient air temperature, floor temperature, or a combination of both to prioritize comfort and floor protection.
What type of sensor is included with the T6 Pro Hydronic?
It ships with a 10k ohm NTC floor sensor. If the existing wired sensor is compatible with 10k resistance, it can often be reused, though the provided Resideo sensor is recommended for maximum accuracy.
Is this unit compatible with electric baseboard heat?
No, this is a low-voltage (24V) thermostat. It is not designed for direct connection to 120V/240V line-voltage systems without the use of a transformer and relay.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
