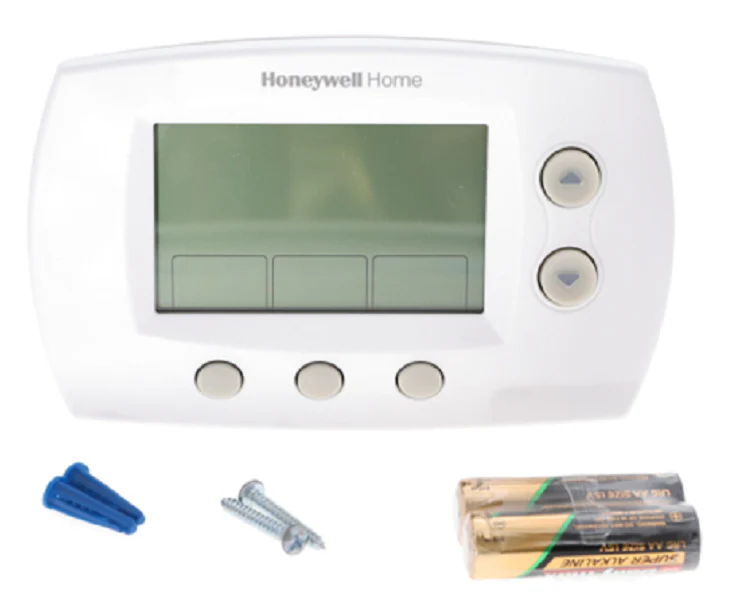

Resideo TH5320R1002 Thermostat
The Resideo TH5320R1002, part of the proven Wireless FocusPro 5000 series, is a non-programmable digital thermostat engineered for high-reliability HVAC applications. Operating on the RedLINK wireless technology protocol, this unit provides flexible installation options for 3H/2C heat pump systems or 2H/2C conventional setups without the need for pulling new thermostat wire. It delivers ± 1 degree accuracy and features a large, backlit display for clear visibility in mechanical rooms or residential hallways. Integration requires a RedLINK Equipment Interface Module (EIM) for standalone systems or a Wireless Adapter when used with TruZone panels. The 40-90°F heating and 50-99°F cooling ranges allow for precise environmental control, while the auto-changeover functionality ensures seamless transitions between heating and cooling stages. This battery-powered, horizontal-mount thermostat is the standard for contractors seeking to resolve wiring challenges in retrofit or zoning applications.
Key Benefits- RedLINK Wireless Communication: Eliminates the need to run wires through walls, reducing installation time and site damage.
- Multi-Stage Compatibility: Supports up to 3 Heat/2 Cool stages, including emergency heat switching for heat pump systems.
- Precise Temperature Control: Maintains tight tolerances within 1 degree of setpoint for consistent occupant comfort.
- Dual-Power Options: Functions as a battery-powered thermostat or can be hardwired via the EIM to ensure continuous operation.
- Universal Application: Works effectively with gas, electric, and oil systems when paired with the proper interface components.
Does the TH5320R1002 require a C-wire?
Since the thermostat communicates wirelessly via RedLINK, the physical unit is battery powered and does not require a C-wire at the wall location. However, the associated Equipment Interface Module at the furnace or air handler will require a 24V common connection.
Can I use this thermostat for zoning?
Yes, this model is designed to work with the TruZone panel system. You will need a Wireless Adapter (sold separately) to bridge the communication between the thermostats and the zone controller.
What is the maximum wireless range for the RedLINK signal?
While range varies based on building materials, the RedLINK wireless technology typically maintains a robust signal through most residential and light commercial structures. Signal strength can be verified directly on the thermostat screen during the setup process.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
