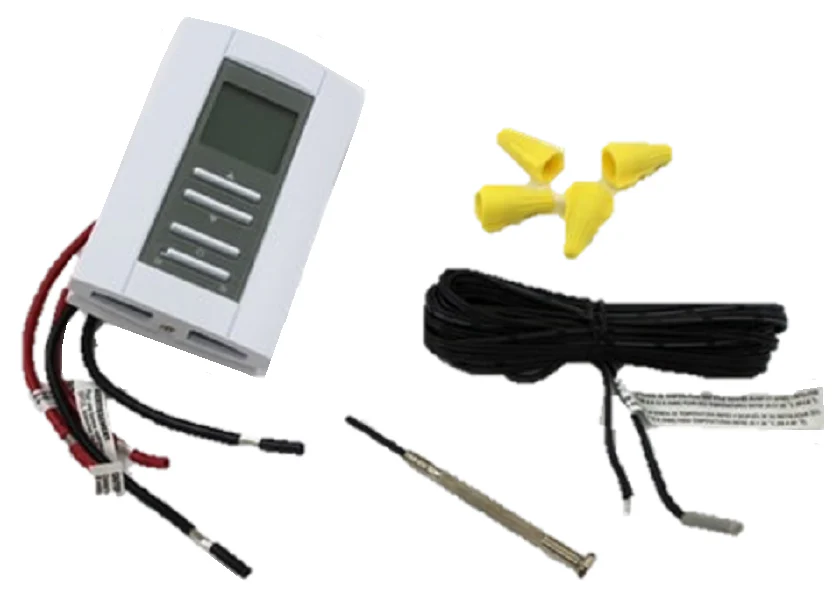

Resideo TH114-AF-GA Thermostat
The Resideo TH114-AF-GA is a professional-grade non-programmable line voltage thermostat engineered specifically for high-performance radiant floor heat applications. This unit features DPST (Double Pole Single Throw) switching, providing a physical disconnect of both power lines for increased safety and adherence to local electrical codes in 240V installations. Designed for precision, it maintains a 0.9°F accuracy and a tight 1°F differential, utilizing a 4-cycle-per-hour rate to eliminate the temperature swings often found in mechanical line voltage controls.
Equipped with a high-visibility backlit display, this electric floor heating thermostat allows for easy monitoring of setpoints ranging from 40°F to 86°F. It includes the Aube AC112-01 North American floor sensor with a 15-foot lead, ensuring the controller receives accurate sub-floor thermal data. For contractors, the vertical mount design and 3600W at 240V capacity make it a versatile solution for residential and light commercial tile, stone, or laminate heating systems.
Key Technician Benefits
- Precise Temperature Control: Advanced electronic temperature control logic maintains stability within 0.9°F of the setpoint.
- Enhanced Safety: Integrated DPST switching ensures the load is fully disconnected when the thermostat is in the "off" position.
- Dual Sensing Capability: Uses the included 10k ohm floor sensor to monitor floor temperature directly while providing ambient air sensing options.
- High Load Capacity: Durable construction handles up to 15 Amps of resistive load, making it compatible with large-scale electric radiant heating mats and cables.
- Contractor Friendly: The white vertical mount design fits standard industrial junction boxes for a clean, professional finish.
Frequently Asked Questions
Can the Resideo TH114-AF-GA be used with 120V and 240V systems?
Yes, this line voltage thermostat is rated for 120/240 VAC applications, making it suitable for a variety of electric floor heat configurations.
Does this unit include a floor sensor in the box?
Yes, this specific model comes standard with the Aube AC112-01 sensor, featuring a 15-foot cable for accurate floor temperature regulation.
Is this thermostat compatible with hydronic floor heating?
This model is specifically designed for line voltage electric heat. For hydronic systems, a low-voltage controller and relay are typically required.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $202.97
-65%$202.97
$71.04Resideo TH114-AF-GA Thermostat
The Resideo TH114-AF-GA is a professional-grade non-programmable line voltage thermostat engineered specifically for high-performance radiant floor heat applications. This unit features DPST (Double Pole Single Throw) switching, providing a physical disconnect of both power lines for increased safety and adherence to local electrical codes in 240V installations. Designed for precision, it maintains a 0.9°F accuracy and a tight 1°F differential, utilizing a 4-cycle-per-hour rate to eliminate the temperature swings often found in mechanical line voltage controls.
Equipped with a high-visibility backlit display, this electric floor heating thermostat allows for easy monitoring of setpoints ranging from 40°F to 86°F. It includes the Aube AC112-01 North American floor sensor with a 15-foot lead, ensuring the controller receives accurate sub-floor thermal data. For contractors, the vertical mount design and 3600W at 240V capacity make it a versatile solution for residential and light commercial tile, stone, or laminate heating systems.
Key Technician Benefits
- Precise Temperature Control: Advanced electronic temperature control logic maintains stability within 0.9°F of the setpoint.
- Enhanced Safety: Integrated DPST switching ensures the load is fully disconnected when the thermostat is in the "off" position.
- Dual Sensing Capability: Uses the included 10k ohm floor sensor to monitor floor temperature directly while providing ambient air sensing options.
- High Load Capacity: Durable construction handles up to 15 Amps of resistive load, making it compatible with large-scale electric radiant heating mats and cables.
- Contractor Friendly: The white vertical mount design fits standard industrial junction boxes for a clean, professional finish.
Frequently Asked Questions
Can the Resideo TH114-AF-GA be used with 120V and 240V systems?
Yes, this line voltage thermostat is rated for 120/240 VAC applications, making it suitable for a variety of electric floor heat configurations.
Does this unit include a floor sensor in the box?
Yes, this specific model comes standard with the Aube AC112-01 sensor, featuring a 15-foot cable for accurate floor temperature regulation.
Is this thermostat compatible with hydronic floor heating?
This model is specifically designed for line voltage electric heat. For hydronic systems, a low-voltage controller and relay are typically required.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
