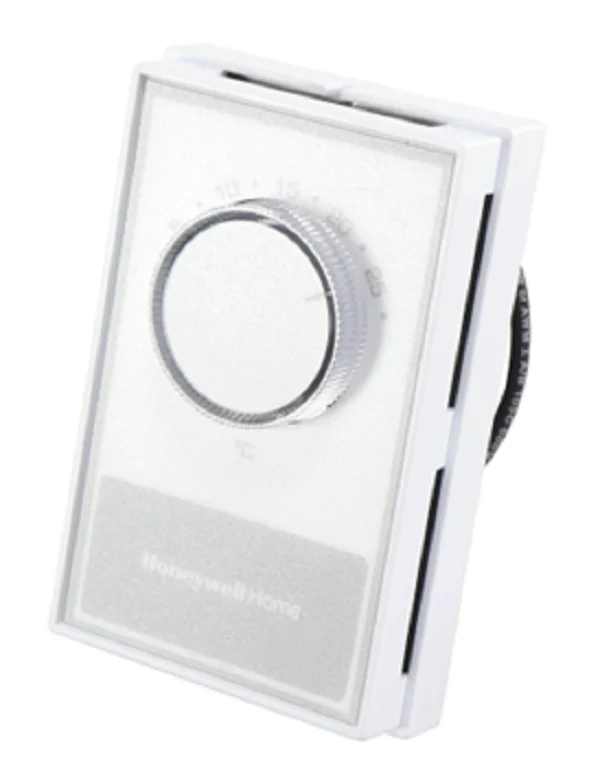

Resideo T498A1927 Thermostat
The Resideo T498A1927 is a heavy-duty single-pole single-throw (SPST) line voltage thermostat designed for reliable control of electric baseboards, convectors, and fan-forced heaters. Engineered for 120-277 VAC electric heat systems, this non-programmable unit features a rugged bimetal sensor and a high-capacity Micro Switch mechanism capable of handling non-inductive resistive loads up to 22 Amps. With a temperature setting range of 5°C to 25°C (40°F to 80°F), it provides precise 1-stage heating control for residential and light commercial applications.
Designed for professional efficiency, the T498A1927/U features 6-inch color-coded copper leadwires to simplify integration into a standard 2x4 inch outlet box or 4x4 inch junction box. The Premier White line volt thermostat includes an integrated thermometer and a plastic mounting base for vertical installation. This mechanical electric heat thermostat is compatible with both copper and aluminum wiring when using approved CO/ALR solderless connectors, ensuring versatile performance in legacy and modern retrofit projects.
Key Benefits- High Load Capacity: Rated for up to 22 Amps at 120/208/240 Vac and 19 Amps at 277 VAC, making it ideal for high-wattage electric heating circuits.
- Durable Construction: Features a long-lasting Micro Switch action and a rugged plastic base to withstand demanding environments.
- Accurate Sensing: The bimetal sensor element provides a ±2°C (3.5°F) differential for consistent room temperature management.
- Contractor-Friendly Installation: Includes color-coded leads and a vertical mounting orientation for quick field swaps and new installs.
Is the T498A1927 compatible with 277V systems?
Yes, this thermostat is rated for line voltage systems including 120, 208, 240, and 277 VAC.
Can this thermostat be used for cooling applications?
No, the T498A1927 is an SPST heating-only thermostat designed specifically for electric heating systems.
Does it support aluminum wiring?
It is suitable for use with aluminum wiring only if approved CO/ALR solderless connectors are utilized during installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
