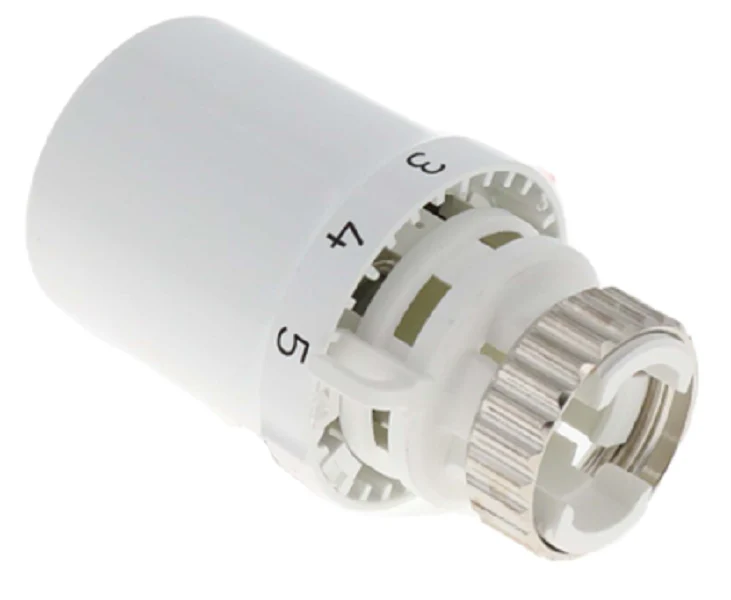

Resideo T3019DAW0NA Thermostatic Head
The Resideo T3019DAW0NA Thermostatic Head is a compact, self-actuating controller designed specifically for Danfoss RA radiator valves. This Thera-6 series operator utilizes a liquid-filled German sensor to provide high setting force and minimal hysteresis, ensuring stable hydronic temperature control across a range of 34°F to 82°F (1°C to 28°C). Constructed from non-yellowing ASA thermoplastic, the T3019DAW0NA features a high-strength internal structural ring to withstand the rigors of commercial and residential heating environments. The snap-on connection allows for a direct-mount installation on RA-type valve bodies without the need for specialized tools. This radiator valve head is engineered for high control accuracy per EN215 standards, making it an essential component for hydronic heating system balancing and energy efficiency. The sleek, closed-handle design prevents dust accumulation while providing clear setpoint markings for end-user operation.
Key Benefits for Contractors- Danfoss RA compatibility: Engineered for seamless snap-on mounting to RA-series valve bodies, replacing legacy T2040NA units.
- Precision thermostatic sensor: Internal liquid-filled element reacts quickly to ambient temperature shifts for tighter 2K p-band flows.
- Rugged construction: ASA thermoplastic housing resists UV yellowing and mechanical stress in high-traffic areas.
- Integrated frost protection: Includes a dedicated frost setting to prevent coil and pipe damage during system downtime.
- Compact form factor: Reduced dimensions allow for installation in narrow baseboards or behind furniture where airflow is present.
How do you install the Resideo T3019DAW0NA on a Danfoss RA valve?
The unit features a snap-on mechanism. Ensure the head is set to the highest position (numerical '5') before aligning the notches and pressing firmly onto the RA valve neck until it clicks into place.
Can this thermostatic head be used in a recessed radiator enclosure?
No, this model uses an integral sensor. For enclosures or areas with restricted airflow, a remote sensor variant should be specified to ensure accurate ambient temperature sensing.
Does the T3019DAW0NA support temperature limiting?
Yes, the head supports range limiting and locking via accessory range locks, allowing technicians to set minimum and maximum temperature thresholds for tenant-occupied spaces.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $40.40
-65%$40.40
$14.14Resideo T3019DAW0NA Thermostatic Head
The Resideo T3019DAW0NA Thermostatic Head is a compact, self-actuating controller designed specifically for Danfoss RA radiator valves. This Thera-6 series operator utilizes a liquid-filled German sensor to provide high setting force and minimal hysteresis, ensuring stable hydronic temperature control across a range of 34°F to 82°F (1°C to 28°C). Constructed from non-yellowing ASA thermoplastic, the T3019DAW0NA features a high-strength internal structural ring to withstand the rigors of commercial and residential heating environments. The snap-on connection allows for a direct-mount installation on RA-type valve bodies without the need for specialized tools. This radiator valve head is engineered for high control accuracy per EN215 standards, making it an essential component for hydronic heating system balancing and energy efficiency. The sleek, closed-handle design prevents dust accumulation while providing clear setpoint markings for end-user operation.
Key Benefits for Contractors- Danfoss RA compatibility: Engineered for seamless snap-on mounting to RA-series valve bodies, replacing legacy T2040NA units.
- Precision thermostatic sensor: Internal liquid-filled element reacts quickly to ambient temperature shifts for tighter 2K p-band flows.
- Rugged construction: ASA thermoplastic housing resists UV yellowing and mechanical stress in high-traffic areas.
- Integrated frost protection: Includes a dedicated frost setting to prevent coil and pipe damage during system downtime.
- Compact form factor: Reduced dimensions allow for installation in narrow baseboards or behind furniture where airflow is present.
How do you install the Resideo T3019DAW0NA on a Danfoss RA valve?
The unit features a snap-on mechanism. Ensure the head is set to the highest position (numerical '5') before aligning the notches and pressing firmly onto the RA valve neck until it clicks into place.
Can this thermostatic head be used in a recessed radiator enclosure?
No, this model uses an integral sensor. For enclosures or areas with restricted airflow, a remote sensor variant should be specified to ensure accurate ambient temperature sensing.
Does the T3019DAW0NA support temperature limiting?
Yes, the head supports range limiting and locking via accessory range locks, allowing technicians to set minimum and maximum temperature thresholds for tenant-occupied spaces.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
