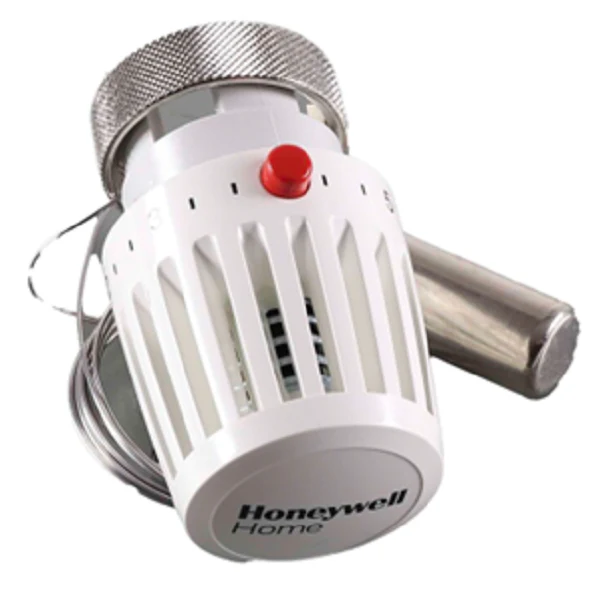

Resideo T104F1512 Control
The Resideo T104F1512 is a high-capacity thermostatic radiator valve actuator engineered for precise temperature regulation in two-pipe hydronic systems. Utilizing a 6 ft. 8 in. capillary tube and a remote sensing bulb, this Braukmann style control provides accurate monitoring of ambient air temperature even when the valve body is located within an enclosure or behind obstructions. It is designed to mount directly onto Resideo V110 series valves, modulating the flow of hot water or low-pressure steam through radiators or convectors without requiring any electrical power.
Built for the rigors of North American commercial and residential applications, the T104F1512 features an integrated setpoint dial with adjustable limits, allowing technicians to lock or restrict the temperature range from 43°F to 79°F. The self-contained actuator ensures consistent comfort by preventing over-heating and under-heating through continuous modulation. For long-term reliability in steam environments, the compatible valve bodies utilize EPDM seat discs for tight shutoff and a nickel-plated bronze construction that stands up to harsh system chemistry.
Key Benefits for Technicians:
- Non-electric operation eliminates the need for wiring, making it ideal for retrofits and areas without power access.
- Remote sensor capillary allows for placement in cold air returns or representative wall locations to ensure true room temperature sensing.
- V110 series compatibility ensures a secure lock to the valve body for stable performance in high-capacity heating loops.
- Replaceable internal cartridge design allows for easy servicing of the valve working parts without draining the entire system.
- Adjustable setpoint limits provide the ability to prevent tenant tampering and optimize energy efficiency.
Common Questions:
How do I install the remote sensor for the T104F1512?
The remote bulb should be mounted where air circulation is unobstructed, typically on a wall or a minimum of 3 inches beneath heating coils in a cold air return. Avoid mounting the sensor on the radiator cabinet itself to prevent false high-temperature readings.
Is this control compatible with steam systems?
Yes, when paired with a V110 series valve, it is rated for two-pipe steam systems up to 15 psi. Do not use this model for one-pipe steam applications, as those require specialized venting controls.
Can I adjust the temperature range after installation?
Yes, the T104F1512 features internal adjustable limits. By removing the setpoint dial cap, a technician can set minimum and maximum temperature stops to maintain system balance.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
