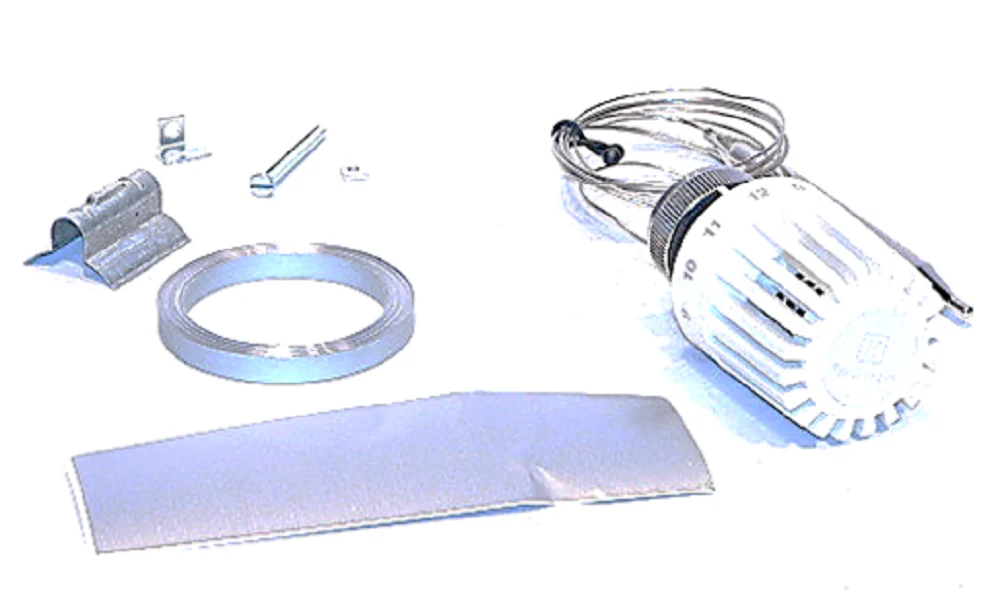

Resideo T100R1004 Operator
The Resideo T100R1004 Operator is a purpose-built non-electric thermostatic operator engineered for precise temperature control in hydronic systems. This remote sensor operator is designed specifically for integration with V135 valve bodies, offering an adjustable temperature range of 50-122F (10-50C). The unit features a high-accuracy liquid-filled sensing element and a 6' 8" (2 meters) long capillary, allowing for flexible positioning. The contact sensor (strap-on bulb) ensures direct thermal transfer from the pipe, while the control head utilizes a low thermal conductivity polymer housing to eliminate ambient heat interference. With an M30 x 1.5 connection and a 10-second response time constant, the T100R1004 provides reactive and reliable mixing and diverting management. It is a critical component for radiant heating loops and industrial fluid control where external power is unavailable or undesired. The knurled ring allows for secure attachment to 3/4" to 1-1/4" valve sizes, ensuring a tight seal and accurate calibration.
Key Benefits
- Precision Thermal Regulation: Features a high-sensitivity liquid-filled sensor for consistent fluid temperature management.
- Non-Electric Reliability: Operates entirely via thermal expansion, making it ideal for remote locations or applications requiring energy independence.
- Simplified Maintenance: The T100R operator can be replaced or serviced without draining the entire hydronic system.
- Rugged Design: Built with low thermal conductivity materials to prevent setpoint drift caused by valve body heat.
- Versatile Compatibility: Native M30 x 1.5 thread pattern fits standard Resideo Braukmann V135 mixing and diverting valves.
Common Questions
What is the primary application for the Resideo T100R1004?
It is primarily used as a thermostatic actuator for V135 valves to control water temperature in radiant floor loops, domestic hot water systems, and mixing or diverting applications.
How do I install the remote sensor for the T100R1004?
The remote contact sensor should be strapped directly to the supply or return pipe using the provided clamp. For peak accuracy, ensure the sensor makes firm contact and is insulated from ambient air.
What is the maximum temperature the sensor can withstand?
The sensing bulb is designed for the 50-122F range, with a maximum limit at the valve attachment ring of 248F (120C) to prevent damage to the internal bellows and actuator components.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
