Resideo T100B1035 Control

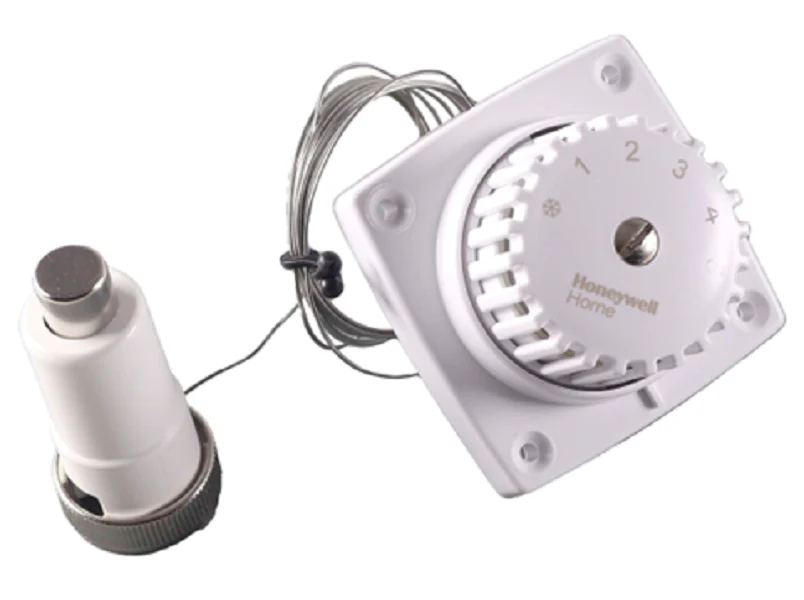

The Resideo T100B1035 Control is a precision thermostatic radiator valve operator engineered for reliable hydronic heat management in commercial and residential settings. This remote setpoint and sensor combination utilizes a 6.5ft capillary tube to provide accurate temperature feedback away from the heat source, ensuring consistent comfort in two-pipe steam or hot water systems. Designed to integrate seamlessly with V100 and V2000 series valves, the T100B1035 features a rugged dial for localized adjustments ranging from 48°F to 79°F. As a non-electric control, it eliminates the need for wiring, making it an ideal solution for retrofitting free-standing radiators and convectors. The nickel-plated brass construction and EPDM valve seat disc provide a tight shutoff and industrial-grade durability. This model replaces legacy units like the T100B1019, maintaining a standard 1-3/16 inch collar diameter for easy mechanical attachment to surviving valve bodies.
Key Benefits- Precise Remote Sensing: The 6-foot capillary sensor allows for temperature detection at a wall-mounted location, preventing false readings caused by radiator heat soak.
- No Electrical Required: Fully autonomous operation simplifies HVAC installation and reduces long-term maintenance by removing the need for power supplies or wiring.
- Direct Valve Compatibility: Specifically designed for Honeywell Braukmann valves (V100/V2000), offering a reliable 1-3/16" connection.
- Serviceability: Internal working parts are accessible and replaceable using standard service tools, even while the system is under pressure.
Is the T100B1035 compatible with one-pipe steam systems?
No, this control is specifically designed for two-pipe steam or hot water systems. For one-pipe applications, verify localized venting requirements and valve body compatibility before selection.
Can the capillary tube be cut or shortened?
The 6.5ft capillary tube is a factory-sealed unit containing the thermal expansion fluid. Cutting the tube will destroy the sensor and render the actuator inoperative.
Does this unit require a separate thermostat?
The T100B1035 functions as a self-contained thermostat. The remote dial acts as the setpoint interface, while the remote bulb senses the ambient air temperature to modulate the valve.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $102.06
-65%$102.06
$35.72Resideo T100B1035 Control
The Resideo T100B1035 Control is a precision thermostatic radiator valve operator engineered for reliable hydronic heat management in commercial and residential settings. This remote setpoint and sensor combination utilizes a 6.5ft capillary tube to provide accurate temperature feedback away from the heat source, ensuring consistent comfort in two-pipe steam or hot water systems. Designed to integrate seamlessly with V100 and V2000 series valves, the T100B1035 features a rugged dial for localized adjustments ranging from 48°F to 79°F. As a non-electric control, it eliminates the need for wiring, making it an ideal solution for retrofitting free-standing radiators and convectors. The nickel-plated brass construction and EPDM valve seat disc provide a tight shutoff and industrial-grade durability. This model replaces legacy units like the T100B1019, maintaining a standard 1-3/16 inch collar diameter for easy mechanical attachment to surviving valve bodies.
Key Benefits- Precise Remote Sensing: The 6-foot capillary sensor allows for temperature detection at a wall-mounted location, preventing false readings caused by radiator heat soak.
- No Electrical Required: Fully autonomous operation simplifies HVAC installation and reduces long-term maintenance by removing the need for power supplies or wiring.
- Direct Valve Compatibility: Specifically designed for Honeywell Braukmann valves (V100/V2000), offering a reliable 1-3/16" connection.
- Serviceability: Internal working parts are accessible and replaceable using standard service tools, even while the system is under pressure.
Is the T100B1035 compatible with one-pipe steam systems?
No, this control is specifically designed for two-pipe steam or hot water systems. For one-pipe applications, verify localized venting requirements and valve body compatibility before selection.
Can the capillary tube be cut or shortened?
The 6.5ft capillary tube is a factory-sealed unit containing the thermal expansion fluid. Cutting the tube will destroy the sensor and render the actuator inoperative.
Does this unit require a separate thermostat?
The T100B1035 functions as a self-contained thermostat. The remote dial acts as the setpoint interface, while the remote bulb senses the ambient air temperature to modulate the valve.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
