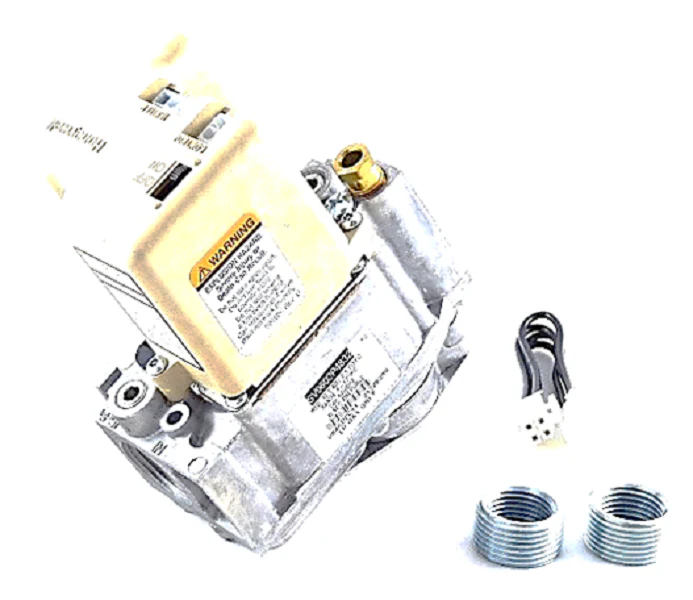

Resideo SV9602P4832 Smart Valve
The Resideo SV9602P4832 Smart Valve is a robust, integrated gas control solution designed for professional contractors managing LP gas heating systems. This 24Vac intermittent hot surface pilot ignition control consolidates gas flow regulation and electronic pilot sequencing into a single, high-performance unit. Engineered with a step opening characteristic, it features a 2.5" wc initial step setting and a 10" wc full rate regulator, ensuring smooth ignition and stable combustion in propane furnaces, boilers, and commercial cooking equipment. The SV9602P4832 is specifically rated for high-output applications with a 3/4" x 3/4" NPT straight-through body pattern and a 1/2 PSI pressure rating. With a 30-second pre-purge and a 90-second ignition trial time, this SmartValve system control is optimized for reliability in demanding environments, maintaining operational integrity across an ambient temperature range of -40°F to 175°F. Its continuous retry logic provides enhanced system uptime by managing ignition failures without immediate lockout.
Key Benefits for HVAC Professionals- Universal Compatibility: Directly interfaces with Q3450 or Q3480 intermittent pilot burners, making it a versatile gas valve replacement for various residential and commercial HVACR units.
- Refined Ignition Control: Combines a hot surface igniter and pilot sequencing for precise electronic control, reducing mechanical points of failure in the field.
- Installation Flexibility: The straight-through body pattern and included reducer bushings allow for seamless integration into existing 3/4" or 1/2" piping configurations.
- Rugged Performance: Built to withstand extreme mechanical room conditions with a wide operating temperature threshold and industrial-grade construction.
Is this valve compatible with natural gas systems?
No, the SV9602P4832 is factory-configured specifically for LP gas (propane) applications. Using this valve with natural gas without a manufacturer-approved conversion kit is unsafe.
What is the purpose of the step opening feature?
The step opening gas valve design provides a lower initial gas pressure (2.5" wc) during the start-up phase to ensure a quieter, more reliable ignition before ramping up to the full manifold pressure of 10" wc.
How does "Continuous Retry" work during a flame failure?
If the flame sensor does not detect a pilot flame during the 90-second ignition trial, the control will cycle through the pre-purge and trial sequence repeatedly until ignition is successful or the call for heat is removed.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
