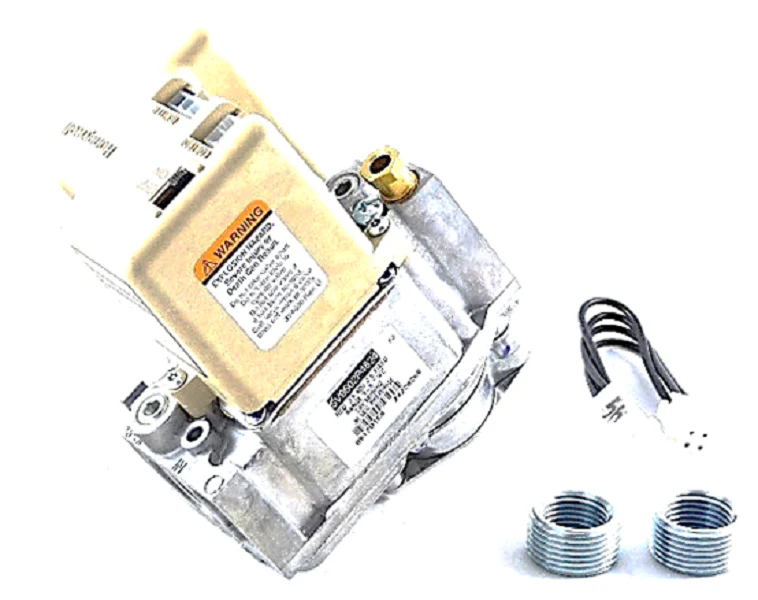

Resideo SV9602P4824 Smart Valve
The Resideo SV9602P4824 is a Smart Valve gas control designed for demanding intermittent pilot system applications. This 24Vac gas valve combines gas flow control with electronic pilot sequencing in a single compact component, making it a reliable choice for HVAC gas valve replacement. It features a step opening regulator mechanism with a 3.5" wc full rate and a 0.7" wc step setting, ensuring smooth ignition transitions. Engineered for natural gas systems, the SV9602P4824 offers a 90-second ignition trial time with continuous retry logic to maintain system uptime. With a 3/4" x 3/4" NPT inlet/outlet and a 1/2 psi pressure rating, this valve handles high-demand heating cycles effectively. The wide ambient temperature range of -40°F to 175°F ensures stable operation in harsh mechanical rooms or rooftop environments. This Honeywell Home SV9602P4824 model also includes a 30-second prepurge cycle and 1/8" pressure tappings for precise manifold adjustments during commissioning.
Key Benefits:
- Integrated Sequencing: Combines ignition control and gas regulation into one unit for simplified troubleshooting and wiring.
- Robust Environmental Tolerance: Operates reliably from sub-freezero to high-heat conditions (-40°F to 175°F).
- Electronic Pilot Ignition: Eliminates the need for a standing pilot, improving overall system energy efficiency.
- Precise Pressure Control: Features step-opening functionality for controlled burner light-off and stable manifold pressure.
- Continuous Retry: Enhances reliability by attempting reignition automatically if the flame signal is lost.
Common Questions:
Can I use the SV9602P4824 for LP gas conversions?
This specific model is calibrated for natural gas. For LP applications, a genuine Resideo conversion kit must be installed to ensure proper orifice sizing and regulator spring tension.
What does the 30-second prepurge do for system safety?
The prepurge clears the combustion chamber of residual gases before the ignition trial begins, preventing delayed ignition or equipment damage.
Does this valve replace standard Honeywell SV9500 series valves?
The SV9602P4824 is part of the SmartValve generation and is designed to work with specific Gen II systems. Always verify the voltage requirements and flange timing before replacing an existing control.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
