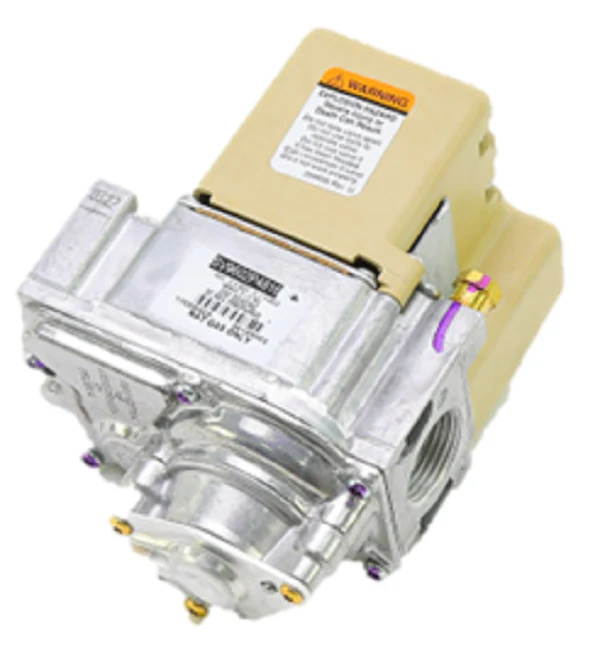

Resideo SV9602P4816 Smart Valve
The Resideo SV9602P4816 Smart Valve is an industrial-grade solution designed to integrate gas flow control and electronic intermittent pilot sequencing into a single, compact unit. Engineered for natural gas applications, this step opening valve operates on a 24Vac control circuit and is a standard replacement for many intermittent hot surface pilot ignition systems. With a 3/4" x 3/4" NPT connection, it handles a 0.5 psi pressure rating and features 1/8" pressure tappings for precise field tuning. The control logic includes a 30-second prepurge, a 90-second ignition trial time, and continuous retry functionality to maximize uptime in demanding residential or commercial environments. Its wide ambient temperature range of -40°F to 175°F ensures reliable performance in unconditioned mechanical rooms or rooftop units. This SmartValve is compatible with Q3450 and Q3480 pilot burners, making it a versatile choice for refurbishing furnaces, boilers, and commercial cooking equipment.
Key Benefits:- Streamlined Installation: Combines ignition control and gas regulation, reducing wiring complexity and labor time.
- Precise Pressure Control: Features a step setting of 0.7" w.c. and a full rate of 3.5" w.c. to ensure smooth main burner ignition.
- Universal Mounting: Designed for flexible orientation, allowing for installations from 0 to 90 degrees in any direction from the upright position.
- Enhanced Troubleshooting: Compatible with SmartValve system diagnostics to quickly identify flame sense or sequence issues.
What is the purpose of the 30-second prepurge?
The prepurge clears the combustion chamber of residual gas before the ignition sequence begins, ensuring a controlled and safe start.
Can this valve be used for LP gas?
The SV9602P4816 is factory-configured for natural gas. Always verify the specific conversion kit requirements before attempting to use it with propane.
How does "continuous retry" work?
If the valve fails to sense a flame during the 90-second ignition trial, it will recycle the sequence indefinitely as long as the call for heat remains, avoiding nuisance lockouts in cold-weather starts.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
