Resideo SV9520H8513 Smart Valve

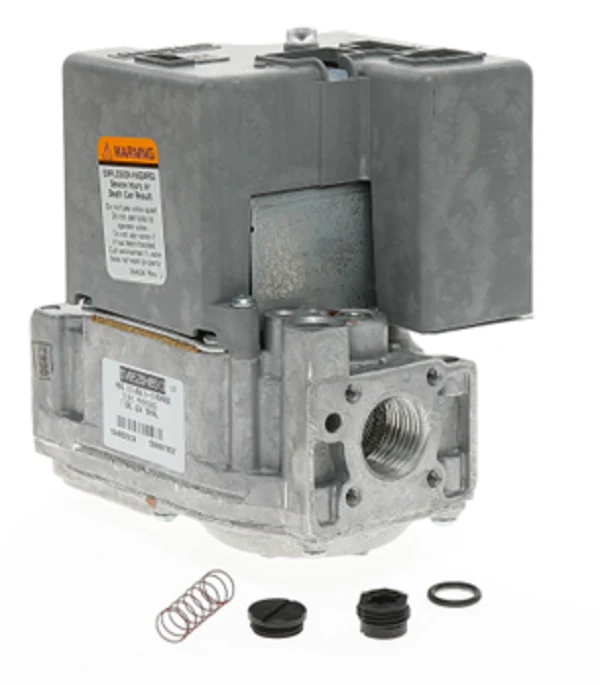

The Resideo SV9520H8513 Smart Valve is a robust, all-in-one combustion control designed for Direct Hot Surface Ignition (HSI) systems. As a veteran-grade Honeywell SmartValve replacement, this 24Vac component integrates gas flow regulation and electronic ignition sequencing into a single unit, streamlining troubleshooting and reducing potential leak points in the manifold. Featuring a fast-slow opening characteristic, it ensures a smooth transition to 3.5" w.c. for consistent burner performance. This 1/2" x 1/2" NPT gas valve is rated for a 1/2 PSI maximum pressure and operates reliably in ambient environments up to 175°F. With a 7-second ignition trial time and a 4-trial to lockout safety logic, it provides precise furnace gas valve control. The assembly includes a 1/8" NPT pressure tapping for manometers and comes with an LP conversion kit, making it a versatile universal gas valve for field service technicians.
Key Benefits for Technicians:- Direct Interface: Communicates seamlessly with ST9160 Electronic Fan Timers and 208907 terminal boards for simplified wiring.
- Onboard Safety: Integrated 4-trial to lockout and flame-sensing technology ensures precise sequence monitoring without external modules.
- Field Versatility: Includes an LP conversion kit for rapid adaptation between natural and propane gas applications.
- Compact Design: Combines functions of a redundant valve and ignition control to save space in tight appliance vestibules.
- Rugged Temperature Rating: Built to withstand commercial environments with an operating range of 0 to 175 degrees Fahrenheit.
How do I test the manifold pressure on this unit?
Use the 1/8" NPT pressure tapping on the outlet side. Attach your manometer and verify the 3.5" w.c. setting (Natural Gas) or 10.0" w.c. if converted to LP.
What is the lockout sequence for the SV9520H8513?
The control allows for 4 trials to lockout. If flame rectification is not established within the 7-second trial time, the system will cycle through three more attempts before shutting down for safety.
Can this replace older Generation I SmartValve models?
Yes, this SV9520 series control acts as a direct upgrade for many legacy Honeywell systems, provided the ignition type matches the 24Vac HSI requirement.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $417.00
-65%$417.00
$145.95Resideo SV9520H8513 Smart Valve
The Resideo SV9520H8513 Smart Valve is a robust, all-in-one combustion control designed for Direct Hot Surface Ignition (HSI) systems. As a veteran-grade Honeywell SmartValve replacement, this 24Vac component integrates gas flow regulation and electronic ignition sequencing into a single unit, streamlining troubleshooting and reducing potential leak points in the manifold. Featuring a fast-slow opening characteristic, it ensures a smooth transition to 3.5" w.c. for consistent burner performance. This 1/2" x 1/2" NPT gas valve is rated for a 1/2 PSI maximum pressure and operates reliably in ambient environments up to 175°F. With a 7-second ignition trial time and a 4-trial to lockout safety logic, it provides precise furnace gas valve control. The assembly includes a 1/8" NPT pressure tapping for manometers and comes with an LP conversion kit, making it a versatile universal gas valve for field service technicians.
Key Benefits for Technicians:- Direct Interface: Communicates seamlessly with ST9160 Electronic Fan Timers and 208907 terminal boards for simplified wiring.
- Onboard Safety: Integrated 4-trial to lockout and flame-sensing technology ensures precise sequence monitoring without external modules.
- Field Versatility: Includes an LP conversion kit for rapid adaptation between natural and propane gas applications.
- Compact Design: Combines functions of a redundant valve and ignition control to save space in tight appliance vestibules.
- Rugged Temperature Rating: Built to withstand commercial environments with an operating range of 0 to 175 degrees Fahrenheit.
How do I test the manifold pressure on this unit?
Use the 1/8" NPT pressure tapping on the outlet side. Attach your manometer and verify the 3.5" w.c. setting (Natural Gas) or 10.0" w.c. if converted to LP.
What is the lockout sequence for the SV9520H8513?
The control allows for 4 trials to lockout. If flame rectification is not established within the 7-second trial time, the system will cycle through three more attempts before shutting down for safety.
Can this replace older Generation I SmartValve models?
Yes, this SV9520 series control acts as a direct upgrade for many legacy Honeywell systems, provided the ignition type matches the 24Vac HSI requirement.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
