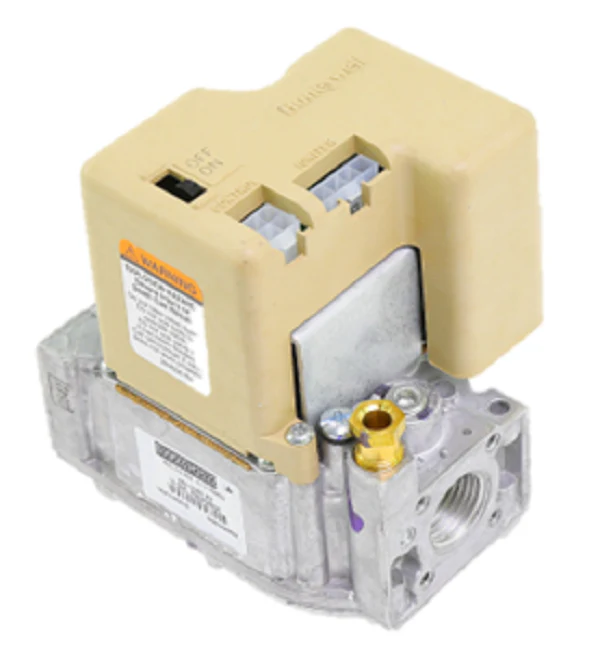

Resideo SV9502H2522 Smart Valve
The Resideo SV9502H2522 Smart Valve is a critical gas flow control and electronic intermittent pilot sequencing component designed for direct intermittent pilot ignition systems. Operating on a 24Vac gas valve circuit, this unit provides precise fuel regulation for natural gas HVAC systems. Engineered for efficiency, it features a 15-second prepurge and a 90-second ignition trial time with continuous retry logic, ensuring reliable burner light-offs even in demanding environments. This slow opening gas valve utilizes a 1/2" x 1/2" NPT connection and is rated for a 1/2 PSI pressure capacity, with a factory-set 3.2" wc outlet pressure. Designed to withstand an ambient temperature range of 0°F to 175°F, the SV9502H2522 integrates gas flow control and ignition sequencing into a single footprint, simplifying field replacements and reducing wiring complexity for service technicians. This Genuine Resideo replacement part is built for long-term stability in high-cycle residential and commercial heating applications.
Key Benefits
- Integrated Control Logic: Combines gas flow safety and pilot sequencing into one module for streamlined troubleshooting.
- Enhanced Ignition Security: 90-second trial for ignition with continuous retry maximizes system uptime.
- Standardized Connections: 1/2" NPT inlet/outlet and 1/8" pressure tapping allow for straightforward pressure testing and installation.
- Industrial Durability: Engineered to maintain consistent flow rates even at the upper limits of its 175°F ambient temperature rating.
Common Questions
Is the SV9502H2522 compatible with LP gas conversion?
This specific model is configured for natural gas. For Liquid Propane applications, a manufacturer-approved conversion kit must be installed to ensure proper orifice sizing and spring tension.
What does the 15-second prepurge accomplish?
The prepurge phase clears the combustion chamber of any residual gases, ensuring a safe and controlled ignition sequence when the thermostat calls for heat.
Can this replace older Honeywell SmartValve generations?
Yes, the SV9502H2522 is often used as a direct replacement for various SV9500 and SV9501 series valves, provided the electrical connections and timing sequences match the original equipment manufacturer (OEM) specs.
