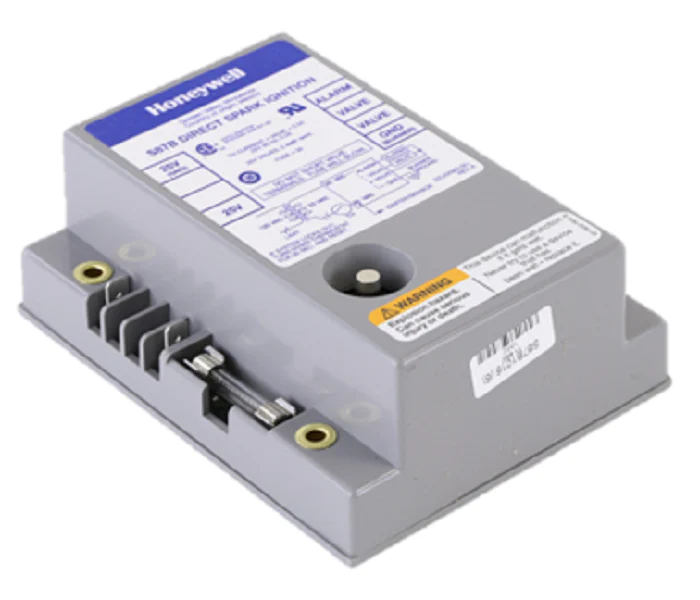

Resideo S87B1016 Ignition Module
The Resideo S87B1016 is a professional-grade Direct Spark Ignition Module engineered for high-reliability electronic control in gas-fired furnaces, boilers, and commercial heating appliances. Operating on a 24 Vac power supply, this solid-state control manages the ignition sequence by generating a high-voltage spark for the main burner while simultaneously monitoring for flame rectification. With a 0.8 second flame failure response time, the module provides rapid safety shutdowns during loss of flame signal. This specific DSI control is designed for Natural or LP gas systems and utilizes a single rod flame sense configuration. The 11-second trial for ignition ensures consistent light-offs, moving directly to a safety lockout if ignition is not achieved within the designated window. The lack of a prepurge timer makes it an ideal drop-in replacement for atmospheric burners requiring immediate ignition upon calls for heat. Featuring an alarm terminal for remote system status monitoring, this Honeywell ignition module is compatible with VR8205 and VR8305 gas controls, supporting valve loads up to 2.0A.
Key Benefits- Instantaneous Ignition: Optimized for systems without a prepurge requirement, providing immediate internal high voltage spark generation.
- Enhanced Safety Logic: Features an 11-second lockout timing and 1-trial ignition sequence to prevent hazardous gas accumulation.
- Broad Compatibility: Seamlessly integrates with standard 24 Vac gas valves and single-rod flame sensing hardware found in most gas heating equipment.
- Remote Monitoring: Includes dedicated alarm terminal contacts (0.5A rating) for connecting external warning lights or buzzers during lockout events.
- High-Temperature Rating: Robust design sustains reliable operation in ambient temperatures ranging from -40°F to 175°F.
How do you reset the Resideo S87B1016 after a safety lockout?
Since this is a single trial for main burner ignition module, a lockout occurs if the flame is not sensed within 11 seconds. You can reset the control by cycling the thermostat or the 24 Vac power supply low enough to break the circuit to the module.
Can I use this module on a dual-rod flame sensing system?
No, the S87B1016 is specifically designed for single rod flame sense applications where the spark and flame sensing occur on the same electrode. For local/separate sensing, a different S87 series module is required.
What does the 0.8 second flame failure response time indicate?
This technical specification defines the maximum time the module will allow the gas valve to remain open after a flame signal drops below the required 1.5 microamp threshold, ensuring rapid fuel shutoff in the event of a flame-out.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $365.79
-65%$365.79
$128.03Resideo S87B1016 Ignition Module
The Resideo S87B1016 is a professional-grade Direct Spark Ignition Module engineered for high-reliability electronic control in gas-fired furnaces, boilers, and commercial heating appliances. Operating on a 24 Vac power supply, this solid-state control manages the ignition sequence by generating a high-voltage spark for the main burner while simultaneously monitoring for flame rectification. With a 0.8 second flame failure response time, the module provides rapid safety shutdowns during loss of flame signal. This specific DSI control is designed for Natural or LP gas systems and utilizes a single rod flame sense configuration. The 11-second trial for ignition ensures consistent light-offs, moving directly to a safety lockout if ignition is not achieved within the designated window. The lack of a prepurge timer makes it an ideal drop-in replacement for atmospheric burners requiring immediate ignition upon calls for heat. Featuring an alarm terminal for remote system status monitoring, this Honeywell ignition module is compatible with VR8205 and VR8305 gas controls, supporting valve loads up to 2.0A.
Key Benefits- Instantaneous Ignition: Optimized for systems without a prepurge requirement, providing immediate internal high voltage spark generation.
- Enhanced Safety Logic: Features an 11-second lockout timing and 1-trial ignition sequence to prevent hazardous gas accumulation.
- Broad Compatibility: Seamlessly integrates with standard 24 Vac gas valves and single-rod flame sensing hardware found in most gas heating equipment.
- Remote Monitoring: Includes dedicated alarm terminal contacts (0.5A rating) for connecting external warning lights or buzzers during lockout events.
- High-Temperature Rating: Robust design sustains reliable operation in ambient temperatures ranging from -40°F to 175°F.
How do you reset the Resideo S87B1016 after a safety lockout?
Since this is a single trial for main burner ignition module, a lockout occurs if the flame is not sensed within 11 seconds. You can reset the control by cycling the thermostat or the 24 Vac power supply low enough to break the circuit to the module.
Can I use this module on a dual-rod flame sensing system?
No, the S87B1016 is specifically designed for single rod flame sense applications where the spark and flame sensing occur on the same electrode. For local/separate sensing, a different S87 series module is required.
What does the 0.8 second flame failure response time indicate?
This technical specification defines the maximum time the module will allow the gas valve to remain open after a flame signal drops below the required 1.5 microamp threshold, ensuring rapid fuel shutoff in the event of a flame-out.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
