Resideo S8600H3002 Ignition Module

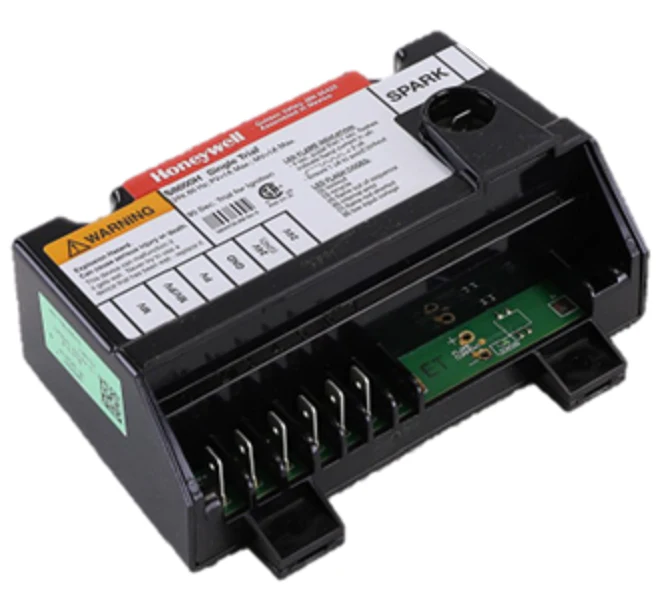

The Resideo S8600H3002 Ignition Module is a specialized intermittent pilot control designed for precise electronic ignition in central furnaces and gas-fired heating systems. This module serves as a critical HVAC replacement part, engineered to manage the ignition sequence for both natural gas and LP gas applications. Operating on 24 Vac, the S8600H3002 features a single rod flame sense configuration and an internal high-voltage spark generator for reliable pilot lighting. To ensure maximum system safety, this Honeywell Home ignition control utilizes a 90-second lockout timing with a single trial for ignition. In the event of a flame loss, the flame failure response time is rated at a maximum of 2 seconds, triggering a safety lockout ignition sequence. This specific model requires a manual reset on lockout, making it a robust solution for contractors troubleshooting pilot outages in residential or commercial equipment.
Key Benefits and Technical Specs
- Intermittent Pilot Operation: Eliminates the need for a standing pilot, increasing energy efficiency in gas furnace ignition systems.
- Rapid Flame Response: 2-second maximum flame failure response time ensures immediate gas shutoff if the pilot fails to stay lit.
- Broad Compatibility: Designed to work seamlessly with VR8204 or VR8304 gas valves and Q345 or Q3451 hardware.
- Environmental Resilience: Rated for ambient operating temperatures from -40°F to 175°F, suitable for demanding mechanical room environments.
- Lockout Safety: A 90-second trial for ignition followed by a manual reset requirement prevents unsafe gas accumulation during equipment faults.
Common Questions
Does this module support pre-purge cycles?
No, the S8600H3002 is a non-pre-purge module, intended for systems where immediate induction and ignition are standard.
Can I use this for both natural gas and propane?
Yes, this control is rated for both fuel types, provided the gas valve and orifices are properly configured for the specific gas being used.
What is the difference between single rod and dual rod sensing?
This module uses single rod flame sensing (local sensing), where the spark igniter and flame sensor are the same component, simplifying the wiring within the burner assembly.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
