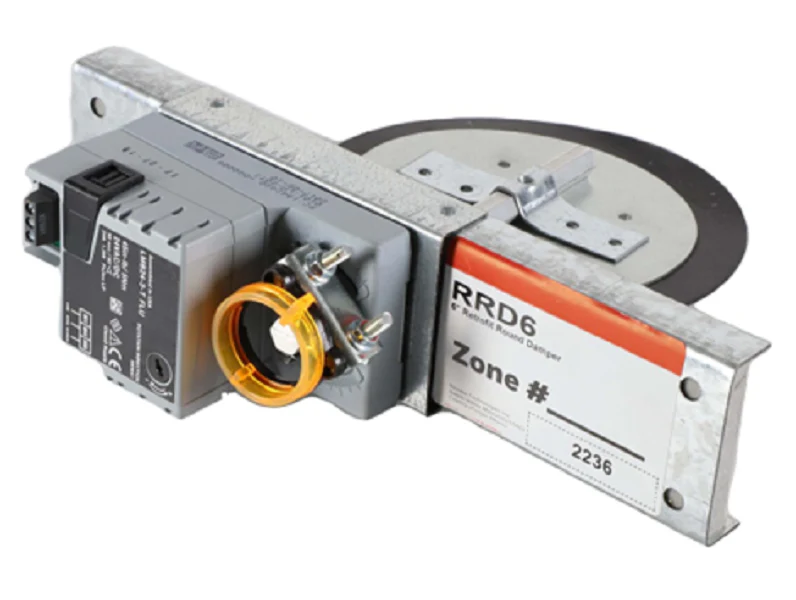

Resideo RRD6 Damper
The Resideo RRD6 Damper is a precision-engineered 6-inch retrofit round damper designed for seamless integration into existing rigid or flexible ductwork. This HVAC zoning damper utilizes a 24Vac, three-wire, power-open/power-closed floating actuator, providing superior control over airflow compared to standard spring-return models. Built for high-cycle reliability, the RRD6 features a robust Resideo damper motor that maintains position without constant power draw once the desired setpoint is reached. Its compact design allows for retrofit duct installation through a small opening in the pipe, making it an essential component for forced air zoning systems where space is limited and precision balancing is required. By utilizing a floating control signal, technicians can achieve more granular airflow management, reducing static pressure issues and improving overall mechanical efficiency across multiple zones.
Key Design Benefits
- Precision Airflow Control: The three-wire floating actuator provides exact blade positioning for accurate residential or light commercial zoning.
- Durable Construction: Engineered for high-duty cycle performance, ensuring the blade holds its seal against HVAC static pressure.
- Simplified Retrofitting: Designed for rapid 6" round duct insertion without requiring the removal of entire duct sections.
- Energy Efficient Operation: Power-open/power-closed logic reduces long-term electrical load on the 24Vac transformer compared to continuous duty spring-return motors.
Common Technical Questions
Can the RRD6 be used with any 24V zoning panel?
The Resideo RRD6 is compatible with most 24Vac HVAC zone controllers that support three-wire power-open/power-closed (PO/PC) actuators. Always verify the VA rating of your transformer to ensure it can handle the actuator load during the transition.
Does this damper require a specific mounting orientation?
This retrofit damper is versatile, but for optimal actuator performance and to prevent debris buildup on the blade seat, it is recommended to mount the unit with the actuator motor positioned horizontally or above the duct centerline.
What is the typical transition time for the floating actuator?
The floating actuator on the RRD6 is designed for steady motor speed to prevent rapid pressure spikes within the ductwork, typically providing a full stroke within 90 seconds depending on the specific controller output.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
