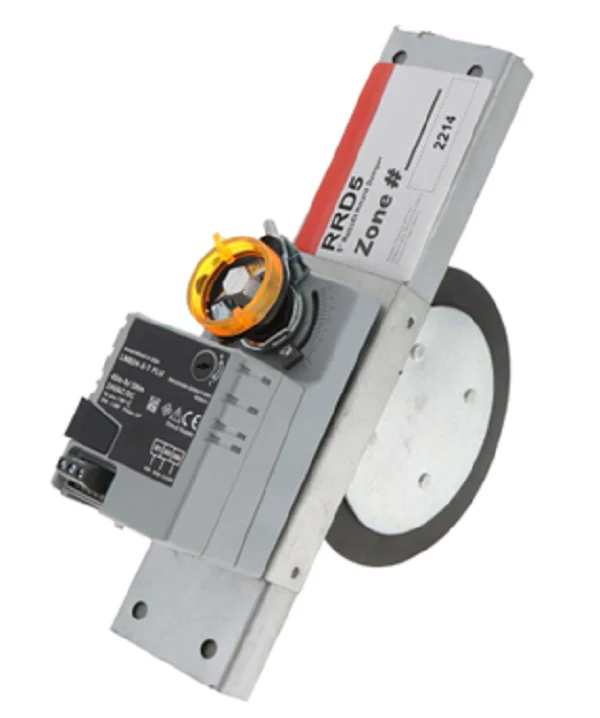

Resideo RRD5 Damper
The Resideo RRD5 is a high-performance 5-inch retrofit round damper designed for professional contractors a looking to integrate reliable zoning into existing rigid ductwork. This HVAC bypass damper features a 24Vac 3-wire floating actuator that provides power open/power closed functionality, ensuring the blade stays exactly where the TrueZONE panel or control system commands it. With an actuator torque of 35 in-lb and a 90-second timing cycle, the Resideo RRD5 delivers consistent air management without the risk of spring-return failure. The slide-in design allows for rapid installation via a small 1-inch wide slot, while the EPDM rubber gaskets ensure low leakage performance for maximum system efficiency. Consuming only 2.5 VA, this motorized zone damper allows for multiple units to be wired in parallel on a single zone without overloading standard control transformers.
Key Benefits for Technicians- Streamlined Retrofit Installation: Installs directly into 5" rigid round ducts without dismantling the run, reducing labor time.
- High-Torque Performance: The 35 in-lb actuator ensures reliable blade movement against high static pressures.
- Superior Seal: Integrated gaskets and 18-gauge galvanized steel frame minimize bypass air when in the closed position.
- Zone Capacity: Low 2.5 VA power draw enables daisy-chaining multiple dampers to a single HZ322 or HZ432 panel.
- Manual Override: Features a push-button gear release for rapid manual positioning during testing and balancing.
How do you wire the Resideo RRD5 for common zone panels?
The RRD5 uses a 3-wire 24V configuration: M1 (Common), M4 (Power Open), and M6 (Power Closed). It is fully compatible with most Honeywell Home and Resideo TruthZONE panels using standard 18-gauge thermostat wire.
Can the RRD5 be installed in flexible ductwork?
This damper is specifically engineered for rigid round branch ducts. For flexible duct installation, a rigid sleeve or transition must be used to ensure the damper blade rotates freely without obstruction.
What is the maximum operating temperature for the actuator?
The actuator is rated for ambient temperatures up to 122°F, making it suitable for most attic and crawlspace duct runs where retrofit zoning is frequently required.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
