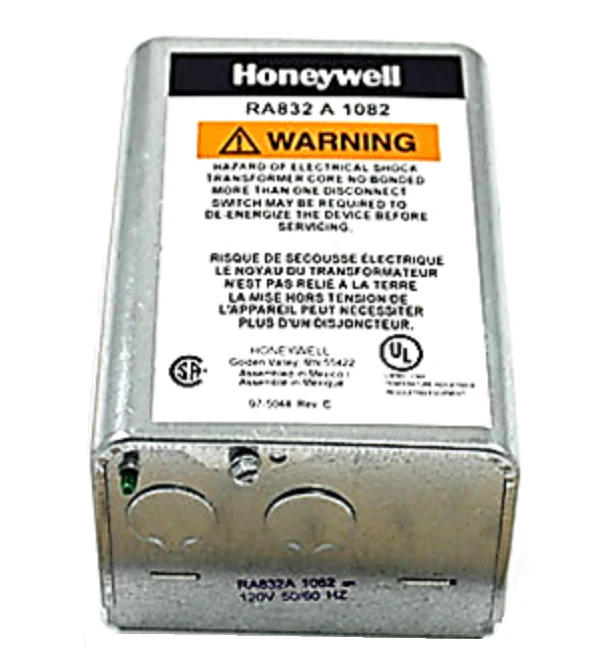

Resideo RA832A1082 Switching Relay
The Resideo RA832A1082 Switching Relay is a trade-grade solution designed for contractors needing reliable intermediate switching of line voltage equipment via a low voltage controller. This 240 Vac input unit features a robust DPST switching action, where one pole handles line voltage while the secondary pole is rated for low voltage or millivolt (PowerPile) auxiliary loads. Engineered with an integral 24 Vac transformer, it eliminates the need for external power sources for the control circuit, simplifying 2-wire setups in hydronic heating or industrial automation. The heavy-duty contacts support a maximum connected load of 2000 VA, making it a staple for high-demand HVAC relay systems. Enclosed in a durable metal cover, the RA832A1082 ensures stable performance in ambient temperatures up to 115°F. Whether you are replacing a legacy Honeywell unit or installing a new 240V switching relay, this component provides the electrical isolation and load management required for professional control circuit integration.
Key Benefits- Dual-Load Versatility: Features a DPST configuration with one pole for line voltage and one for low voltage/millivolt circuits.
- Self-Powered Design: Includes a built-in 24 Vac transformer providing 50 VA pilot duty power.
- Contractor-Ready Housing: Ships with a protective metal cover and is UL Listed for commercial and residential installations.
- High Current Capacity: Rated for 7.4A AFL at 120 Vac and 3.7A AFL at 240 Vac to handle heavy motor or heater loads.
- Universal 2-Wire Control: Compatible with standard 24V thermostats and controllers for streamlined wiring.
Can the RA832A1082 be used with millivolt systems?
Yes, the secondary pole is specifically designed to handle millivolt or PowerPile auxiliary loads, making it suitable for older gas valves or specialized control loops.
What is the maximum ambient temperature for this relay?
The relay is rated for a maximum ambient temperature of 115°F (46°C) at 60 Hz, ensuring reliability in utility closets and mechanical rooms.
Does this unit require a separate transformer for the thermostat?
No, the integral transformer supplies the necessary low voltage power for the 2-wire control circuit directly.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
