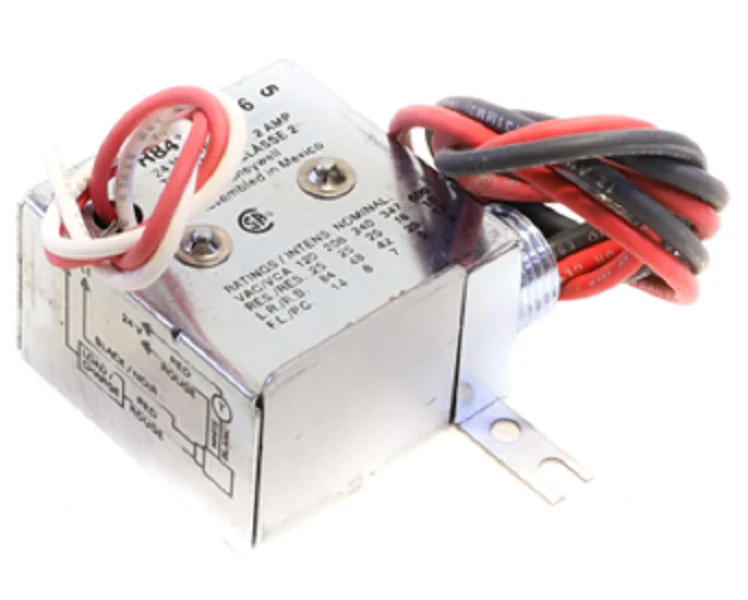

Resideo R841D1036 Relay
The Resideo R841D1036 Electronic Heating Relay is a specialized low voltage relay engineered for precise control of electric heating equipment. Designed with a 24Vac coil rating, this SPST switching component provides reliable high-amperage handling for baseboard heaters, radiant cables, and duct heaters. The unit is rated for 22 Amp resistive loads at 120/208/240Vac and 19 Amp at 277Vac, ensuring compatibility with standard commercial and residential heating configurations. This model features silent operation, making it an ideal Honeywell heating relay substitute for sensitive environments where mechanical clicking must be minimized. The integrated enclosure with conduit bushing simplifies field installation by allowing direct mounting to standard junction boxes, providing immediate protection for terminal connections.
Key Benefits- High Load Capacity: Supports 14 Amp full load at 120Vac and 7 Amp at 208/240/277Vac, catering to diverse electric heat relay applications.
- Rugged Durability: Specifically designed to manage high locked rotor amperage (up to 84 Amp at 120Vac and 42 Amp at 208/240/277Vac) without premature contact pitting.
- Contractor Friendly: The NEMA-rated enclosure includes a 1/2-inch conduit bushing for streamlined wiring and code compliance.
- Acoustic Comfort: Solid-state components eliminate noisy mechanical switching, enhancing occupant comfort in residential living spaces.
Is the R841D1036 compatible with smart thermostats?
Yes, this 24V HVAC relay is compatible with most modern 2-wire and 3-wire electronic thermostats, provided the 24Vac transformer has sufficient VA capacity for the coil pull-in.
Can this relay control multiple baseboard heaters?
The R841D1036 can control multiple units as long as the total resistive amperage does not exceed 22 Amps at 240Vac. Always verify the aggregate plate amperage during HVAC troubleshooting.
Where should the R841D1036 be mounted?
This electric heating control is designed for mounting on a standard 4x4 junction box or directly to the wiring compartment of the heating unit using the provided conduit bushing.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $80.92
-65%$80.92
$28.32Resideo R841D1036 Relay
The Resideo R841D1036 Electronic Heating Relay is a specialized low voltage relay engineered for precise control of electric heating equipment. Designed with a 24Vac coil rating, this SPST switching component provides reliable high-amperage handling for baseboard heaters, radiant cables, and duct heaters. The unit is rated for 22 Amp resistive loads at 120/208/240Vac and 19 Amp at 277Vac, ensuring compatibility with standard commercial and residential heating configurations. This model features silent operation, making it an ideal Honeywell heating relay substitute for sensitive environments where mechanical clicking must be minimized. The integrated enclosure with conduit bushing simplifies field installation by allowing direct mounting to standard junction boxes, providing immediate protection for terminal connections.
Key Benefits- High Load Capacity: Supports 14 Amp full load at 120Vac and 7 Amp at 208/240/277Vac, catering to diverse electric heat relay applications.
- Rugged Durability: Specifically designed to manage high locked rotor amperage (up to 84 Amp at 120Vac and 42 Amp at 208/240/277Vac) without premature contact pitting.
- Contractor Friendly: The NEMA-rated enclosure includes a 1/2-inch conduit bushing for streamlined wiring and code compliance.
- Acoustic Comfort: Solid-state components eliminate noisy mechanical switching, enhancing occupant comfort in residential living spaces.
Is the R841D1036 compatible with smart thermostats?
Yes, this 24V HVAC relay is compatible with most modern 2-wire and 3-wire electronic thermostats, provided the 24Vac transformer has sufficient VA capacity for the coil pull-in.
Can this relay control multiple baseboard heaters?
The R841D1036 can control multiple units as long as the total resistive amperage does not exceed 22 Amps at 240Vac. Always verify the aggregate plate amperage during HVAC troubleshooting.
Where should the R841D1036 be mounted?
This electric heating control is designed for mounting on a standard 4x4 junction box or directly to the wiring compartment of the heating unit using the provided conduit bushing.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
