Resideo R8285D5001 Control Center

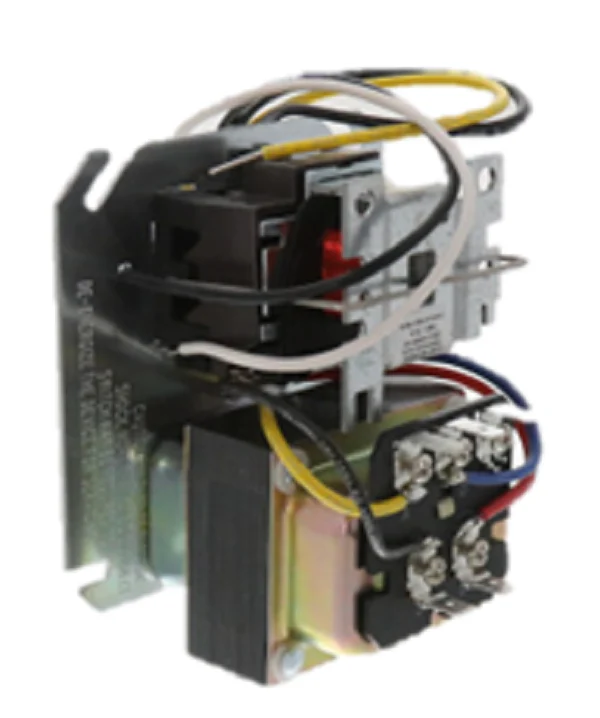

The Resideo R8285D5001 Control Center is a robust 50VA fan control center engineered for hydronic heating applications and integrated HVAC systems. This HVAC control center features a built-in transformer that steps down 120Vac primary power to a 26.5V secondary output, providing the necessary 50VA capacity to power low-voltage circuits while ensuring integrated overload protection. Built with a DPST switching action, this unit includes one power-rated pole and one pilot-duty pole, making it specifically compatible with the SV9600 SmartValve System and other line-voltage fan motors reaching up to 3/4 horsepower.
Designed for professional efficiency, the Honeywell R8285D5001 includes a field-replaceable R8222U relay, allowing technicians to swap components without disturbing existing wiring. The assembly mounts directly to a standard 4"x4" junction box, and the low-voltage terminal board simplifies thermostat and auxiliary circuit connections. With an electrical rating of 12 Amps full load at 120Vac and a 72 Amp locked rotor capacity, this control center is a reliable solution for managing line voltage fan motors in both residential and light commercial boiler systems.
Key Benefits- Universal Compatibility: Optimized for hydronic systems and high-capacity 50VA requirements, including SmartValve configurations.
- Simplified Serviceability: The plug-in R8222U relay can be replaced in seconds, reducing downtime during service calls.
- Heavy-Duty Switching: DPST configuration supports simultaneous control of line-voltage fans and auxiliary pilot-duty circuits.
- Standard Installation: Fits traditional 4x4 junction boxes, ensuring a clean and secure fit in tight mechanical rooms.
- Integrated Protection: The internal transformer is designed to protect low-voltage control systems from overcurrent and surges.
Is the R8285D5001 compatible with 240V systems?
Yes, while the primary supply is 120Vac, the contacts are rated for 6 Amps full load at 240Vac (35 Amp locked rotor), allowing for high-voltage motor control.
Can I use this control center to add cooling to an existing heating system?
This unit is ideal for adding air conditioning or fan control to hydronic heat setups, as it provides the secondary power and switching logic needed for multi-stage configurations.
Does this unit require a specific mounting orientation?
It is designed to mount on a 4"x4" junction box; ensure the wiring is properly routed through the conduit openings to maintain technical clearance and heat dissipation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
