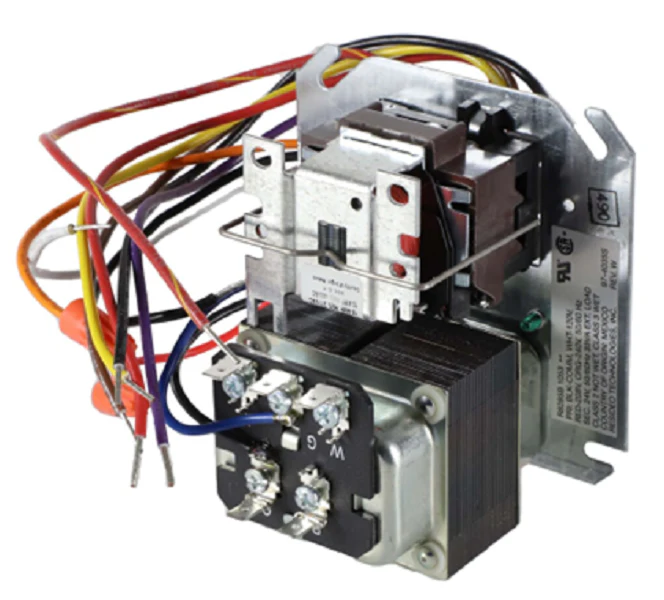

Resideo R8285B1053 Control Center
The Resideo R8285B1053 Control Center is a heavy-duty solution designed for Total Comfort HVAC applications, providing precise low-voltage control over line-voltage fan motors and auxiliary components. Engineered for versatility, this unit features a 40VA transformer with multi-tap primary connections for 120V, 208V, or 240VAC, making it compatible with a wide range of residential and light commercial equipment. The integrated R8222D DPDT relay provides robust Double Pole Double Throw switching, ideal for managing integrated systems including electronic air cleaners, humidifiers, and blower motors up to 3/4 HP.
This fan control center is built for the field; it mounts directly to a standard 4" x 4" junction box, and the relay can be replaced without disturbing the existing housing or field wiring. With Full Load electrical ratings of 12 Amps at 120V and 6 Amps at 240V, it effectively manages high-demand inductive loads while maintaining a secondary 26.5V power supply for thermostat and accessory circuits. The low-voltage terminal board ensures organized, reliable connections for heating and cooling transitions.
Key Benefits
- Multi-Voltage Compatibility: Supports 120, 208, and 240VAC primary inputs for streamlined inventory and on-site flexibility.
- Integrated System Control: DPDT switching allows for simultaneous operation of blower motors and IAQ accessories like electronic air cleaners and humidifiers.
- High Inductive Capacity: Rated for 3/4 HP motors with a Locked Rotor Amperage (LRA) of up to 72 Amps at 120V.
- Easy Maintenance: Features a replaceable Honeywell R8222D relay that simplifies service calls by allowing component swaps without rewiring the transformer base.
- Robust Transformer: The 40VA power supply provides ample overhead for low-voltage control circuits and auxiliary relays.
Common Questions
What equipment is compatible with the R8285B1053?
This control center is specifically designed for "Total Comfort" systems where a single thermostat signal needs to trigger a blower motor along with secondary accessories like an air purifier or humidifier. It is compatible with most 24V thermostats and equipment operating within its 3/4 HP and 40VA ratings.
Can I use this to replace a single-pole fan center?
Yes, the DPDT (Double Pole Double Throw) switching can often substitute for SPDT or SPST applications by using only the necessary poles, provided the electrical ratings and voltage requirements match the original specifications.
Does this unit include the relay?
Yes, the R8285B1053 comes factory-equipped with an R8222D relay, ready for installation onto a standard junction box.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
