Resideo R8228B1012 Relay

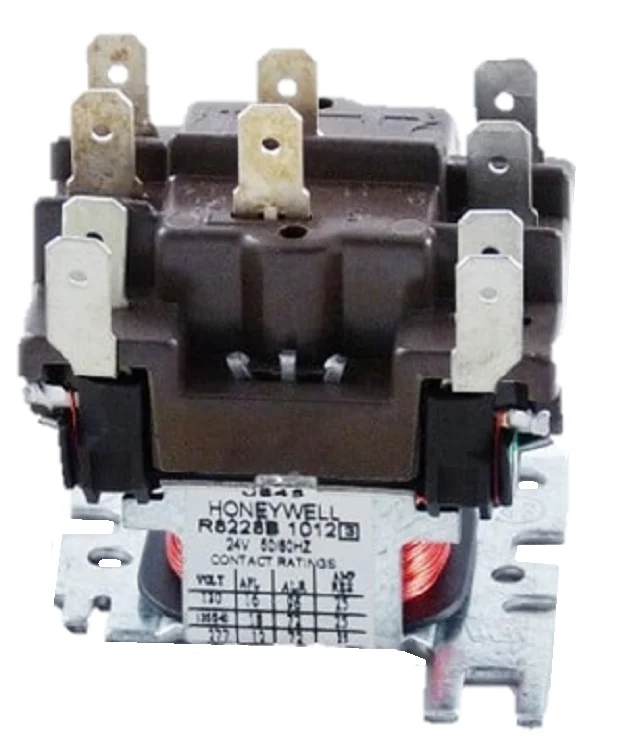

The Resideo R8228B1012 Relay is a field-proven heavy duty switching relay engineered to handle demanding electrical loads in refrigeration, air conditioning, and industrial heating applications. This 24Vac coil switching relay features a Single Pole Double Throw (SPDT) configuration, providing reliable logic for both normally open and normally closed circuits. It serves as the direct R8228B1012 HN61KA016 replacement, facilitating a seamless upgrade for aged HVAC switching relays without requiring extensive rewiring. Built with a laminated magnet construction and an untaped coil, this unit excels in thermal dissipation and operational efficiency. The base is specifically designed for cross-compatibility, fitting the footprint of most competitive relays, including the Steveco 90-340 and Mars 90340. With 1/4" quick-connect terminals and clear molded circuit diagrams, this 24V general purpose relay simplifies field diagnostics and speeds up installation in tight control cabinets.
Key Benefits- High-Capacity Switching: Rated for up to 18 Amps at 240Vac (Full Load) and 25 Amps Resistive, making it ideal for heavy motor and compressor loads.
- Universal Footprint: Direct plug compatibility with industry-standard parts like Mars 90340 and Steveco 90-340 ensures fast service calls.
- Efficient Thermal Design: Features an untaped coil for superior cooling and a laminated magnet for reduced power consumption during continuous duty.
- Simple Identification: Molded terminal numbers and an on-unit schematic prevent wiring errors during 24V control circuit setup.
- Wide Temperature Range: Certified to operate reliably in environments from -20°F to 150°F.
Is the R8228B1012 compatible with older HN61KA016 units?
Yes, the R8228B1012 is the official updated version for the HN61KA016. It maintains the same mounting footprint and electrical specifications for a drop-in HVAC relay replacement.
Can this relay be used for 480Vac applications?
Yes, this SPDT heavy duty relay is rated for 5 Amps Full Load and 12.5 Amps Resistive at 480Vac, providing versatility for high-voltage industrial equipment.
Does it support both 50Hz and 60Hz systems?
This relay is designed for 60Hz operation but maintains its technical specifications for 24Vac nominal control circuits common in North American HVACR systems.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $44.45
-65%$44.45
$15.56Resideo R8228B1012 Relay
The Resideo R8228B1012 Relay is a field-proven heavy duty switching relay engineered to handle demanding electrical loads in refrigeration, air conditioning, and industrial heating applications. This 24Vac coil switching relay features a Single Pole Double Throw (SPDT) configuration, providing reliable logic for both normally open and normally closed circuits. It serves as the direct R8228B1012 HN61KA016 replacement, facilitating a seamless upgrade for aged HVAC switching relays without requiring extensive rewiring. Built with a laminated magnet construction and an untaped coil, this unit excels in thermal dissipation and operational efficiency. The base is specifically designed for cross-compatibility, fitting the footprint of most competitive relays, including the Steveco 90-340 and Mars 90340. With 1/4" quick-connect terminals and clear molded circuit diagrams, this 24V general purpose relay simplifies field diagnostics and speeds up installation in tight control cabinets.
Key Benefits- High-Capacity Switching: Rated for up to 18 Amps at 240Vac (Full Load) and 25 Amps Resistive, making it ideal for heavy motor and compressor loads.
- Universal Footprint: Direct plug compatibility with industry-standard parts like Mars 90340 and Steveco 90-340 ensures fast service calls.
- Efficient Thermal Design: Features an untaped coil for superior cooling and a laminated magnet for reduced power consumption during continuous duty.
- Simple Identification: Molded terminal numbers and an on-unit schematic prevent wiring errors during 24V control circuit setup.
- Wide Temperature Range: Certified to operate reliably in environments from -20°F to 150°F.
Is the R8228B1012 compatible with older HN61KA016 units?
Yes, the R8228B1012 is the official updated version for the HN61KA016. It maintains the same mounting footprint and electrical specifications for a drop-in HVAC relay replacement.
Can this relay be used for 480Vac applications?
Yes, this SPDT heavy duty relay is rated for 5 Amps Full Load and 12.5 Amps Resistive at 480Vac, providing versatility for high-voltage industrial equipment.
Does it support both 50Hz and 60Hz systems?
This relay is designed for 60Hz operation but maintains its technical specifications for 24Vac nominal control circuits common in North American HVACR systems.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
