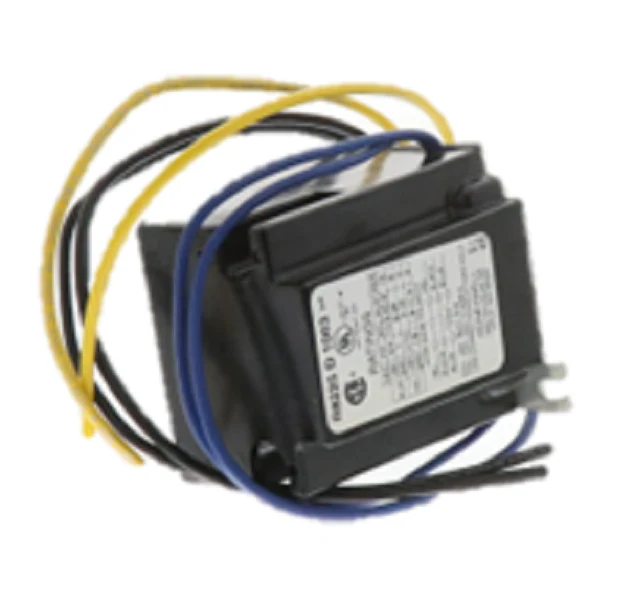

Resideo R8225D1003 Fan Relay
The Resideo R8225D1003 Fan Relay is a heavy-duty DPST normally open switching solution engineered for demanding HVACR applications, including refrigeration and air conditioning equipment, vending machines, and industrial appliances. Operating on a 24Vac coil rating, this double-pole single-throw relay provides reliable control for both general and heavy-duty switching requirements. For 120Vac circuits, it manages a 14 Amp full load and 84 Amp locked rotor rating on the normally open contacts, while at 240Vac, it handles 8 Amp full load and 48 Amp locked rotor. The inclusion of auxiliary contacts (3 Amp at 120Vac / 2 Amp at 240Vac) allows for integrated signaling or secondary load control. This HVAC compressor relay is designed for high-cycle reliability in commercial fan motor control environments, ensuring stable performance across resistive and inductive loads. The R8225D1003 specifications make it a versatile drop-in component for contractors requiring precise voltage isolation and robust current handling in the field.
Key Benefits for Contractors
- Dual-Load Capacity: The DPST switching configuration allows for simultaneous control of two separate circuits or phases.
- High Inrush Tolerance: Rated for up to 84 Amp locked rotor at 120V, preventing contact welding during motor startup.
- Universal Application: Ideal for fan motor relay replacement in everything from walk-in coolers to residential AHUs.
- Compact Footprint: Designed for easy integration into existing control panels and tight electrical enclosures.
- Reliable 24V Logic: Standard 24Vac coil ensures compatibility with most common HVAC control transformers.
Common Questions
What is the difference between full load and locked rotor ratings on this relay?
Full load refers to the continuous current the contacts can handle while the motor is running at speed, whereas the locked rotor rating defines the maximum surge current the relay can withstand during the initial startup peak.
Can the R8225D1003 be used for heating applications?
Yes, while optimized for fan and refrigeration switching, the resistive ratings (up to 16 Amp at 120Vac) make it suitable for electric heat sequences and other resistive loads within its electrical parameters.
Does this relay include auxiliary contacts for feedback loops?
Yes, this model features auxiliary contacts rated for 3 Amps at 120Vac or 2 Amps at 240Vac, allowing you to trigger indicator lights or secondary control circuits alongside the main load.
