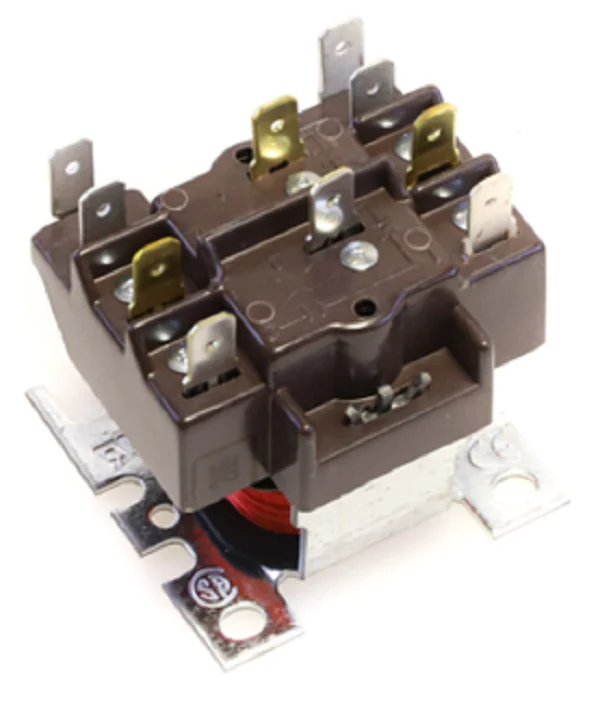

Resideo R8222V1003 Relay
For heavy-duty switching in commercial and residential refrigeration and air conditioning systems, the Resideo R8222V1003 relay is a standard-issue solution for contractors needing reliability. This 24Vac switching relay features a DPDT contact configuration with one pole dedicated to power and one for pilot duty, making it ideal for managing multiple loads in appliances and HVAC machinery. The laminated magnet construction ensures high efficiency, while the un-taped open coil design provides cooler operation during cycles. Engineered with 1/4" quick connect terminals and molded terminal numbers, this unit allows for fast identification and trouble-free wiring in the field. It is technically compatible as a direct replacement for Steveco 90-340 and Mars 90340. With a resistive rating of 20.8 Amps at 120/208/240/277Vac and a wide temperature range of -20°F to 150°F, this relay handles industrial-grade environments without performance degradation.
Key Benefits
- Universal Field Replacement: Specifically designed with a base that simplifies the replacement of competitive relays like the Steveco 90-340 and Mars 90340.
- High Amperage Capacity: Supports 12 Amp AFL at 120Vac and 20.8 Amp resistive loads, providing heavy-duty performance for fan motors and compressors.
- Efficient Thermal Management: The open coil design facilitates superior heat dissipation, reducing the risk of premature failure in high-ambient conditions.
- Versatile Powerpile Support: Includes Normally Open (N.O.) contacts rated for 0.25 Amp @ 0.25-12Vdc for Millivolt/Powerpile applications.
- Accurate Diagnostics: Features a circuit diagram and molded numbers on the relay top for rapid troubleshooting and system verification.
Common Questions
What is the difference between the power and pilot duty poles?
The power pole is designed for higher current loads like motors and heaters, while the pilot duty pole is rated for lower-capacity control circuits, ensuring precise switching for signaling and interlocking.
Can I use this relay for Powerpile systems?
Yes, the Resideo R8222V1003 is rated for Powerpile applications on the Normally Open (N.O.) contacts, specifically for 0.25 Amp at 12Vdc.
Is this a direct replacement for Honeywell branded relays?
Yes, Resideo is the manufacturer of Honeywell Home products; this DPDT 24V relay is the identical technical successor to the legacy Honeywell R8222V1003.
