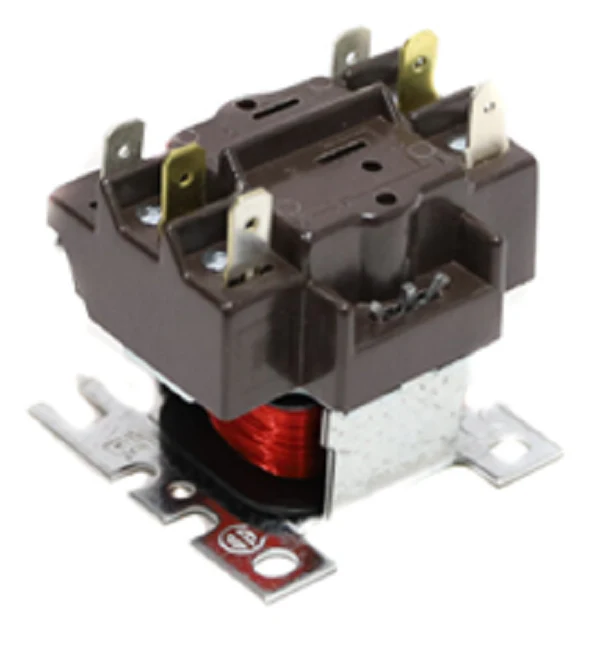

Resideo R8222U1079 Relay
The Resideo R8222U1079 Relay is a heavy-duty general purpose switching relay engineered for reliable performance in refrigeration, air conditioning, and commercial appliance applications. This 24Vac switching relay features DPST Normally Open contacts, including one power pole and one pilot duty pole, providing versatile control for HVAC switching circuits. With a robust design that includes 1/4" quick connect terminals and a laminated magnet construction for high efficiency, this DPST relay is an ideal field replacement for Steveco 90-340 and Mars 90340 models. It handles a variety of loads, supporting 12 Amp at 120Vac full load and up to 60 Amp locked rotor ratings at 120Vac. Designed to operate in ambient temperatures from -20 to 150 degrees Fahrenheit, the Resideo R8222U1079 ensures stable switching in demanding environments. This HVAC contactor relay is also compatible with Powerpile (millivolt) systems on its normally open contacts, making it a staple for every service truck.
Key Benefits:- Direct Cross-Reference Compatibility: Specifically designed for easy replacement of standard industry relays, including Steveco and Mars 90340.
- Enhanced Thermal Efficiency: Features an open coil design that ensures cooler operation during continuous duty cycles.
- Simplified Field Wiring: Includes molded terminal numbers and a clear circuit diagram on the top housing for fast identification.
- High Inductive Load Capacity: Rated for 60A locked rotor at 120Vac and 35A at 208/240/277Vac.
- Flexible Application Use: Suitable for low voltage 24Vac controls, pilot duty signals, and millivolt Powerpile circuits.
- What are the physical dimensions for mounting? The unit measures approximately 1-7/8" high x 2-1/8" wide x 2-3/8" deep, fitting standard mounting footprints.
- Can this relay replace a DPDT model? This is a DPST (Double Pole Single Throw) Normally Open relay; it can replace a DPDT if only the N.O. poles are utilized in the application.
- Is this rated for 480Vac systems? Yes, it features contact ratings of 3 Amp full load and 18 Amp locked rotor at 480Vac.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
