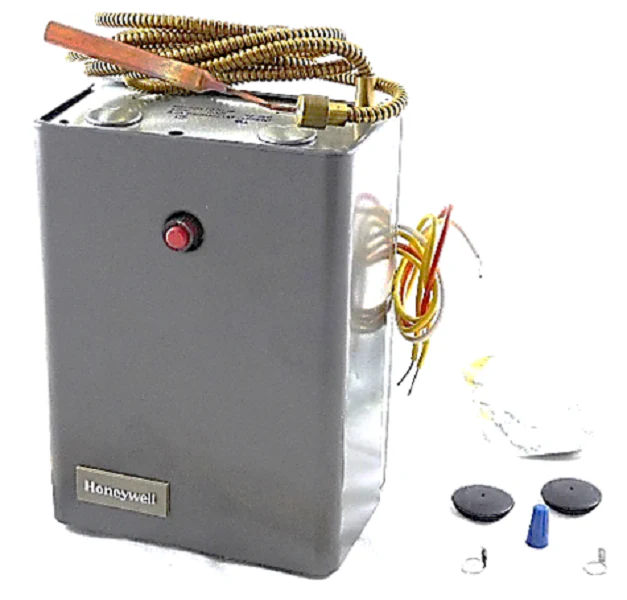

Resideo R8182H1070 Controller
The Resideo R8182H1070 is a heavy-duty 120Vac combination Protectorelay and hydronic heating controller designed for intermittent ignition oil burner systems. This immersion-type Aquastat controller provides critical high-limit protection, low-limit maintenance, and circulator control in a single unit. It features a 5-foot armored capillary for remote sensor placement, mounting securely to a standard 4x4 junction box. The safety switch timing is set at 45 seconds, ensuring a controlled restart sequence if flame failure occurs during the run cycle. With a 4.4 Amp AFL rating at 120V, this oil burner primary control is built for the high-demand environments of residential and light commercial bolier systems.
For contractors managing multi-zone setups, the R8182H1070 includes dedicated ZC and ZR terminals, facilitating seamless circulator zone control when paired with an R845A switching relay. The high-limit operating range of 130°F to 240°F and an adjustable low-limit from 110°F to 220°F allow for precise thermal management tailored to the system’s specific delta-T requirements. Packaged in a vertical case with heat-conductive compound included, this controller ensures accurate temperature sensing and reliable triple action Aquastat performance in modern hydronic applications.
Key Benefits for the Installer:- Enhanced Multi-Zone Integration: Built-in ZC and ZR terminals allow for easy expansion of circulator zone control without complex rewiring.
- Remote Sensor Flexibility: Equipped with a 5-foot armored capillary, ideal for junction box mount configurations where the sensor must be positioned away from the main control.
- Field-Proven Safety: Integrated 45-second safety switch provides a reliable lockout mechanism in the event of incomplete combustion or ignition failure.
- Precise Thermal Control: Features a fixed 10°F high-limit differential and an adjustable 10°F to 25°F low-limit differential for optimized boiler cycling.
Can the R8182H1070 handle multiple circulator zones?
Yes, by utilizing the ZC and ZR terminals along with an R845A relay, you can control multiple circulator zones. For systems using zone valves, the unit is compatible with V8043 or V8044 series valves.
What flame detector is compatible with this Protectorelay?
This controller requires a C554A Cadmium Sulfide Flame Detector (ordered separately) and a standard 24Vac 2-wire thermostat for proper operation.
Does it include the immersion well?
The R8182H1070 includes the heat-conductive compound and the vertical case, but the immersion well must typically be selected and ordered separately based on the specific boiler tapping depth and insulation requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,109.44
-65%$1,109.44
$388.30Resideo R8182H1070 Controller
The Resideo R8182H1070 is a heavy-duty 120Vac combination Protectorelay and hydronic heating controller designed for intermittent ignition oil burner systems. This immersion-type Aquastat controller provides critical high-limit protection, low-limit maintenance, and circulator control in a single unit. It features a 5-foot armored capillary for remote sensor placement, mounting securely to a standard 4x4 junction box. The safety switch timing is set at 45 seconds, ensuring a controlled restart sequence if flame failure occurs during the run cycle. With a 4.4 Amp AFL rating at 120V, this oil burner primary control is built for the high-demand environments of residential and light commercial bolier systems.
For contractors managing multi-zone setups, the R8182H1070 includes dedicated ZC and ZR terminals, facilitating seamless circulator zone control when paired with an R845A switching relay. The high-limit operating range of 130°F to 240°F and an adjustable low-limit from 110°F to 220°F allow for precise thermal management tailored to the system’s specific delta-T requirements. Packaged in a vertical case with heat-conductive compound included, this controller ensures accurate temperature sensing and reliable triple action Aquastat performance in modern hydronic applications.
Key Benefits for the Installer:- Enhanced Multi-Zone Integration: Built-in ZC and ZR terminals allow for easy expansion of circulator zone control without complex rewiring.
- Remote Sensor Flexibility: Equipped with a 5-foot armored capillary, ideal for junction box mount configurations where the sensor must be positioned away from the main control.
- Field-Proven Safety: Integrated 45-second safety switch provides a reliable lockout mechanism in the event of incomplete combustion or ignition failure.
- Precise Thermal Control: Features a fixed 10°F high-limit differential and an adjustable 10°F to 25°F low-limit differential for optimized boiler cycling.
Can the R8182H1070 handle multiple circulator zones?
Yes, by utilizing the ZC and ZR terminals along with an R845A relay, you can control multiple circulator zones. For systems using zone valves, the unit is compatible with V8043 or V8044 series valves.
What flame detector is compatible with this Protectorelay?
This controller requires a C554A Cadmium Sulfide Flame Detector (ordered separately) and a standard 24Vac 2-wire thermostat for proper operation.
Does it include the immersion well?
The R8182H1070 includes the heat-conductive compound and the vertical case, but the immersion well must typically be selected and ordered separately based on the specific boiler tapping depth and insulation requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
