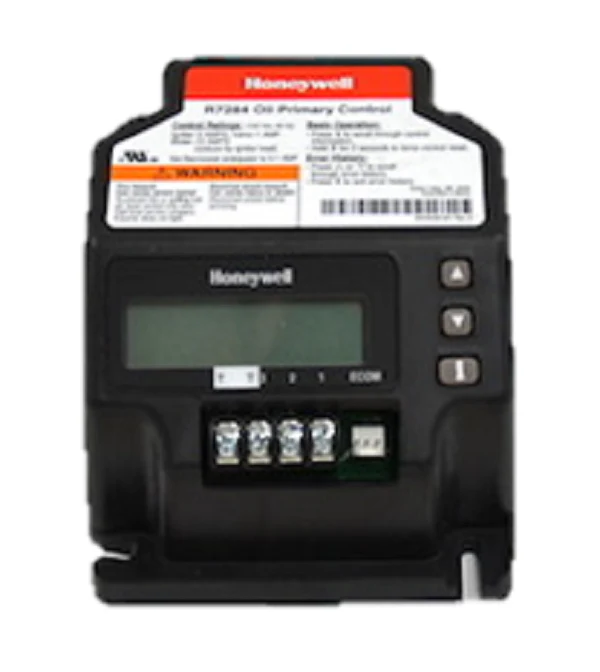

Resideo R7284P1080 Safety Switch
The Resideo R7284P1080 is a high-performance electronic oil primary control engineered for residential oil-fired burners used in boilers, forced air furnaces, and water heaters. As a veteran-grade oil burner control, it features a 15-second lockout time and a sophisticated user interface that simplifies troubleshooting for field technicians. This microprocessor-based control supports both interrupted and intermittent ignition, providing reliable burner sequencing by monitoring cad cell resistance and managing gas valves, igniters, and burner motors. With its EnviraCOM communication bus, this unit allows for remote monitoring and advanced diagnostics through a 2-line digital display, eliminating the need for external meters during initial setup. Designed for precise timing, it includes adjustable valve-on delay and burner motor-off delay, ensuring optimal draft and reducing oil after-drip. The rugged vertical mounting and wide operating temperature range from -40°F to 147°F make it a staple for ensuring combustion safety and system reliability in demanding HVAC environments. This universal digital primary provides actionable data in multiple languages, making it a critical component for any service truck.
Key Benefits- Advanced Diagnostics: The two-line LCD provides clear, actionable text for 15-second lockout events and flame strength, reducing troubleshooting time.
- Universal Compatibility: Engineered to work with both hydronic and forced air systems, ensuring compatibility with standard and EnviraCOM thermostats.
- Field Adjustability: Allows for precision tuning of valve-on and blower-off delays to improve efficiency and reduce soot buildup.
- Simplified Pump Priming: Features a dedicated pump prime routine accessible via simple button presses during the trial for ignition.
- Integrated Safety: Monitors cad cell resistance and line voltage dips to prevent unsafe firing conditions and hard lockouts.
How do I resolve a Hard Lockout on this control?
To reset from a Hard Lockout, press and hold the "i" button for at least 2 seconds. If the unit enter a Restricted Lockout due to consecutive failures, the button must be held for 10 seconds to return the control to standby.
Can I monitor flame strength without an ohmmeter?
Yes, the digital interface displays the cad cell resistance in ohms during the burner run cycle, allowing you to verify flame quality and sensor alignment in real-time.
What ignition types are supported by the R7284P1080?
This primary control is designed for both interrupted and intermittent ignition applications, providing flexibility for various burner head configurations.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $103.92
-65%$103.92
$36.37Resideo R7284P1080 Safety Switch
