Resideo R7284B1024 Control

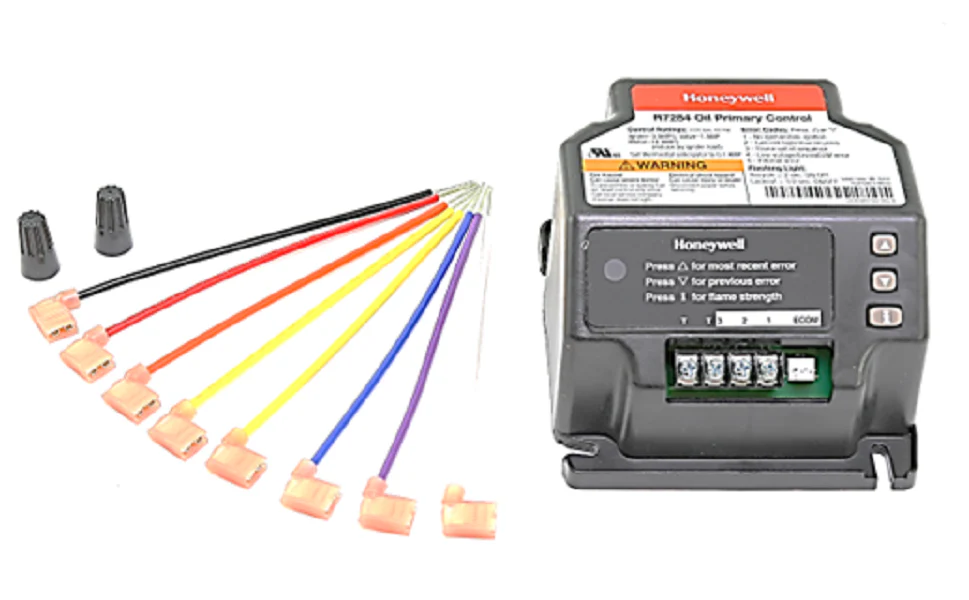

The Resideo R7284B1024 Electronic Oil Primary is a robust interrupted ignition oil burner control designed for reliability in hydronic heating and forced air applications. This unit manages the burner motor, oil valve, and ignition transformer while monitoring the flame via a cad cell. With a 15-second safety switch timing, it ensures precise timing during the trial for ignition, minimizing unburned fuel accumulation. The control supports various electrical connections including limit, thermostat, and alarm circuits, providing comprehensive system oversight. It is rated for a Full Load of 7.4 Amps at 120Vac and 3.7 Amps at 240Vac, with a Locked Rotor capacity of up to 44.4 Amps at 120Vac. Engineered for extreme environments, it operates efficiently within a temperature range of -40°F to 147°F. This enviracom enabled primary control integrates seamlessly into existing HVAC burner setups via standard junction box mounting, making it a versatile replacement oil primary for service technicians.
Key Benefits for Technicians- Broad Compatibility: Suitable for both forced air furnaces and hydronic boilers, streamlining truck stock requirements.
- Advanced Diagnostics: Compatible with hand-held tools for quick troubleshooting of flame signal and lockout history.
- Durable Construction: Rated for extreme ambient temperatures, ensuring stable oil burner control in unconditioned mechanical rooms.
- Interrupted Ignition: Increases component longevity by de-energizing the ignition transformer once the flame is established.
- Simplified Wiring: Clearly labeled terminals for burner motor, oil valve, and alarm contacts facilitate faster field installations.
How do I check the cad cell resistance with this control?
The R7284B1024 allows for real-time monitoring of cad cell ohms; ensure the resistance is below 1600 ohms for reliable operation during the run cycle.
Can this unit replace an older R8184G series primary?
Yes, this electronic primary is a functional upgrade for many older electromechanical controls, providing more precise safety timings and diagnostic capabilities.
What happens if the flame fails during the run cycle?
The control will detect the loss of flame via the cad cell and enter a recycle mode, attempting to restart the burner after a short delay unless a lockout condition is met.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
