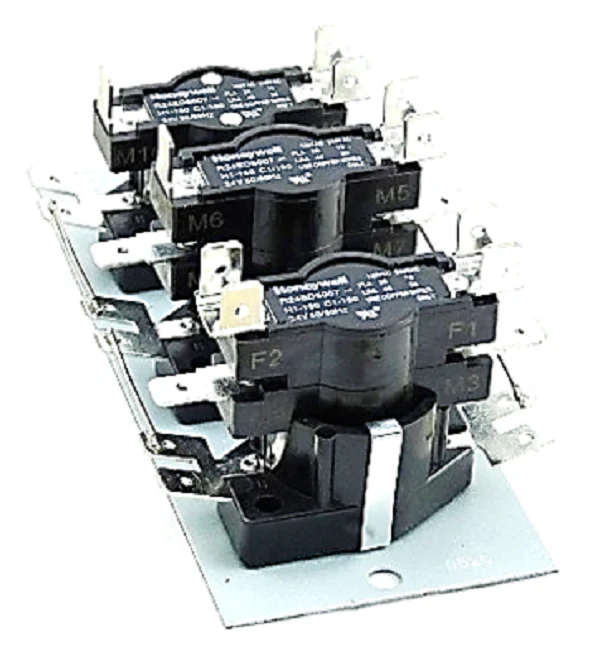

Resideo R24ED5007 Heat Sequencer
The Resideo R24ED5007 Heat Sequencer is a five-switch field-replacement solution engineered for precise staging in high-demand electric heat applications. This heavy-duty 24V HVAC sequencer features a 1-160 second ON/OFF timing delay across all five switches, ensuring gradual power ramps that prevent circuit breaker tripping and eliminate nuisance flickering in residential and light commercial systems. Built for durability, the unit is shock and vibration resistant and can be mounted in any orientation without affecting physical timing mechanisms. The R24ED5007 residential sequencer provides versatile terminal options with 1/4" quick connect electrical connections (solder or screw type) to facilitate rapid field wiring. With a 25 Amp resistive contact rating at 120Vac and 14 Amp inductive capacity, this multi-stage heat sequencer is the professional choice for maintaining consistent discharge air temperatures while protecting the blower motor and heating elements from simultaneous high-amperage surges.
Key Technical Benefits:
- Universal Mounting: Engineered to function at peak performance regardless of installation position, providing flexibility in tight furnace plenums.
- Five-Switch Staging: Features four distinct ON timings to sequence up to five separate heating elements or blower circuits.
- Broad Timing Range: A reliable 1-160 second delay window ensures compatibility with most OEM sequence specifications.
- Robust Load Capacity: Rated for 25A resistive loads, making it suitable for high-kilowatt electric furnace banks.
- Rugged Design: Specifically hardened against mechanical vibration to prevent premature contact arcing or timing drift.
Common Installation Questions:
How do I wire a Resideo R24ED5007 in a 5-stage electric furnace?
Line voltage should be connected to the specific staged terminals, while the 24Vac control circuit triggers the internal heater. Ensure the total FLA of the elements does not exceed the 25A resistive rating per switch.
Can the R24ED5007 replace a 2-switch or 3-switch sequencer?
Yes, this 5-switch model can replace sequencers with fewer poles by simply leaving the additional terminals unused, provided the timing specs align with the system requirements.
What causes a heat sequencer to stick or fail to cycle?
Failure is typically caused by pitted contacts due to over-amping or a burnt-out internal 24V heater. Replacing the unit restores the necessary safety delay between heating stages.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
