Resideo R24BA1006 Heat Sequencer

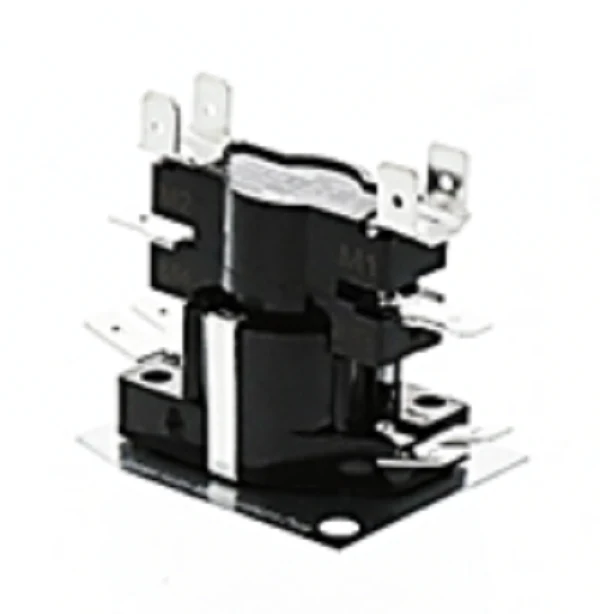

The Resideo R24BA1006 Heat Sequencer is a field-proven 2-stage electric heat relay designed for precise sequencing of heating elements and blower motors in residential and light commercial air handlers. Operating on a standard 24Vac input voltage, this sequencer features a 1-20 second on timing delay for both switches to prevent nuisance tripping and massive inrush current. For cool-down cycles, both switches provide a 40-110 second off timing delay, ensuring maximum latent heat recovery from the coils. This multi-stage heat sequencer is engineered for high-duty cycles, featuring a 25 Amp resistive contact rating and a 14 Amp inductive rating at 120Vac. The unit is built with solder or screw type 1/4" quick connect electrical connections and is shock and vibration resistant, allowing for reliable operation when mounted in any orientation within the control cabinet.
- Universal Mounting: Designed to function at any angle, easing installation in cramped or uniquely oriented electric furnace control cabinets.
- Heavy-Duty Switching: Handles high-amperage resistive loads common in electric strip heaters without premature contact pitting.
- Delayed Sequencing: Staggers the engagement of heating elements to stabilize line voltage and protect the transformer.
- Standardized Infrastructure: Features M-style sequencing architecture, making it a reliable drop-in for various OEM configurations.
Common HVAC Technical Questions
What is the proper wiring for the R24BA1006 terminals?
The 24V control circuit connects to the bottom heater terminals to initiate the bimetal strip. The line voltage for the elements or fan motor connects to the top quick-connect terminals, which close based on the internal timing mechanism.
Can this sequencer replace a single-stage unit?
Yes, if the application only requires one stage, you can utilize a single pole; however, ensure the resistive contact rating matches the nameplate of the heater to prevent overload.
Does this unit handle blower motor initiation?
Typically, the first stage of the electric heat sequencer is used to energize the blower motor to ensure airflow is established before the heating elements reach maximum temperature.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $30.48
-65%$30.48
$10.67Resideo R24BA1006 Heat Sequencer
The Resideo R24BA1006 Heat Sequencer is a field-proven 2-stage electric heat relay designed for precise sequencing of heating elements and blower motors in residential and light commercial air handlers. Operating on a standard 24Vac input voltage, this sequencer features a 1-20 second on timing delay for both switches to prevent nuisance tripping and massive inrush current. For cool-down cycles, both switches provide a 40-110 second off timing delay, ensuring maximum latent heat recovery from the coils. This multi-stage heat sequencer is engineered for high-duty cycles, featuring a 25 Amp resistive contact rating and a 14 Amp inductive rating at 120Vac. The unit is built with solder or screw type 1/4" quick connect electrical connections and is shock and vibration resistant, allowing for reliable operation when mounted in any orientation within the control cabinet.
- Universal Mounting: Designed to function at any angle, easing installation in cramped or uniquely oriented electric furnace control cabinets.
- Heavy-Duty Switching: Handles high-amperage resistive loads common in electric strip heaters without premature contact pitting.
- Delayed Sequencing: Staggers the engagement of heating elements to stabilize line voltage and protect the transformer.
- Standardized Infrastructure: Features M-style sequencing architecture, making it a reliable drop-in for various OEM configurations.
Common HVAC Technical Questions
What is the proper wiring for the R24BA1006 terminals?
The 24V control circuit connects to the bottom heater terminals to initiate the bimetal strip. The line voltage for the elements or fan motor connects to the top quick-connect terminals, which close based on the internal timing mechanism.
Can this sequencer replace a single-stage unit?
Yes, if the application only requires one stage, you can utilize a single pole; however, ensure the resistive contact rating matches the nameplate of the heater to prevent overload.
Does this unit handle blower motor initiation?
Typically, the first stage of the electric heat sequencer is used to energize the blower motor to ensure airflow is established before the heating elements reach maximum temperature.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
