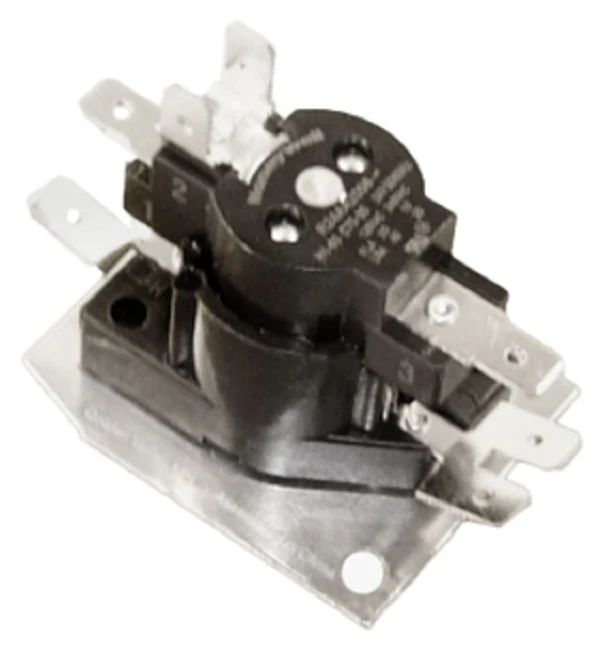

Resideo R24AA2006 Heat Sequencer
Maximize the efficiency of your staged heating setups with the Resideo R24AA2006 Heat Sequencer. Engineered specifically for HVAC heat pump air handlers and electric furnaces, this 24VAC heat sequencer manages the timed activation of heating elements to prevent localized grid overload and minimize the initial cold air blast during system startup. As a single pole double throw (SPDT) model, it provides the precise switching required for multi-stage resistance heat banks.
Built with solid-state PTC (Positive Temperature Coefficient) heaters, the R24AA2006 provides stable performance across a wide ambient temperature range (-40°F to 165°F). This Honeywell Home R24AA2006 cross-reference replacement features an adjustable on-delay of 1–25 seconds and an off-delay of 65–115 seconds, facilitating a smoother ramp-up and cool-down cycle. The 25A resistive contact rating at 120/240VAC ensures high-capacity handling for demanding electric heat strips, while the 1/4" quick-connect terminals allow for rapid field installation in any mounting orientation.
Key Benefits:- Staged load management reduces electrical surges by sequencing heating elements.
- PTC heater technology ensures consistent timing regardless of voltage fluctuations.
- Flexible mounting design allows for installation in any position within the air handler.
- Shock and vibration resistant construction ensures durability in high-airflow environments.
- Universal compatibility allows it to replace over 40 competitive sequencer models.
What is the circuit configuration for this sequencer?
The R24AA2006 is a Single Pole Double Throw (SPDT) device designed for precise sequencing in residential and light commercial configurations.
Can this be used for both heat pumps and electric furnaces?
Yes, it is optimized for managing the blower and heating element timing in both heat pump and standalone electric furnace applications.
What are the electrical ratings for the contacts?
The unit is rated for 25A resistive and 14A inductive loads at 120VAC, providing reliable switching for standard electric heat banks.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
