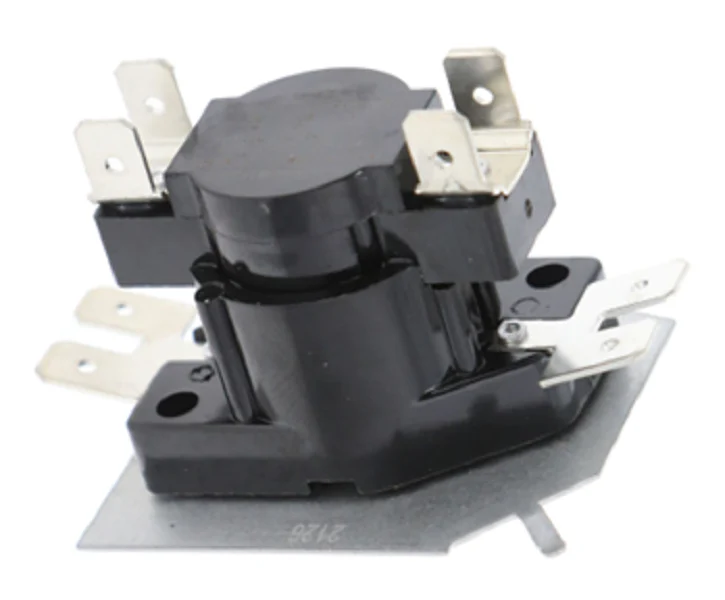

Resideo R24AA1008 Heat Sequencer
The Resideo R24AA1008 Heat Sequencer is a field-proven, solid-state solution for managing heating element staging in electric furnaces, heat pumps, and air handlers. Engineered with a positive temperature coefficient (PTC) heater, this single-switch sequencer ensures staggered activation to mitigate high inrush currents and prevent circuit overload. For crews on the job, the universal heat sequencer replacement design is a significant advantage, as it is built to cross-reference over 40 competitive models from major HVAC manufacturers.
This 24V electric heat sequencer features a reliable 1-20 second "On" delay and a 40-110 second "Off" delay, crucial for eliminating the initial blast of cold air during startup. The unit is shock and vibration resistant, allowing for stable performance in high-duty cycle residential or commercial equipment. With a 25 Amp resistive rating and 14 Amp inductive rating at 120Vac, it handles standard element loads with ease. The R24AA1008 sequencer is designed for flexible installation, featuring 1/4" quick-connect terminals and a compact frame that mounts in any position.
Key Benefits:
- Universal Compatibility: Replaces a wide range of OEM sequencers, reducing the need to carry multiple specialized parts on the truck.
- Precision Timing: Controlled sequenced switching protects heating elements and improves homeowner comfort by managing airflow timing.
- Rugged Construction: Solid-state PTC design and vibration resistance ensure longevity in demanding air handler environments.
- Flexible Installation: Professional-grade HVAC sequencer wiring is simplified via 1/4" solder or screw-type quick-connect electrical connections.
Common Questions:
How do I know if this sequencer is compatible with my furnace?
The R24AA1008 is a highly versatile component that replaces many 24V single-switch models. Check your existing part’s timing and contact ratings; if they align with the 25A resistive rating and 24Vac input, this is a standard replacement.
Can this unit be mounted horizontally?
Yes, the internal PTC heater and solid-state components allow the unit to be mounted in any orientation without affecting the timing delays or contact performance.
What is the purpose of the 40-110 second off-delay?
The off-delay ensures that the blower fan continues to run long enough to dissipate residual heat from the elements after the thermostat is satisfied, protecting the heat exchanger and maximizing efficiency.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
