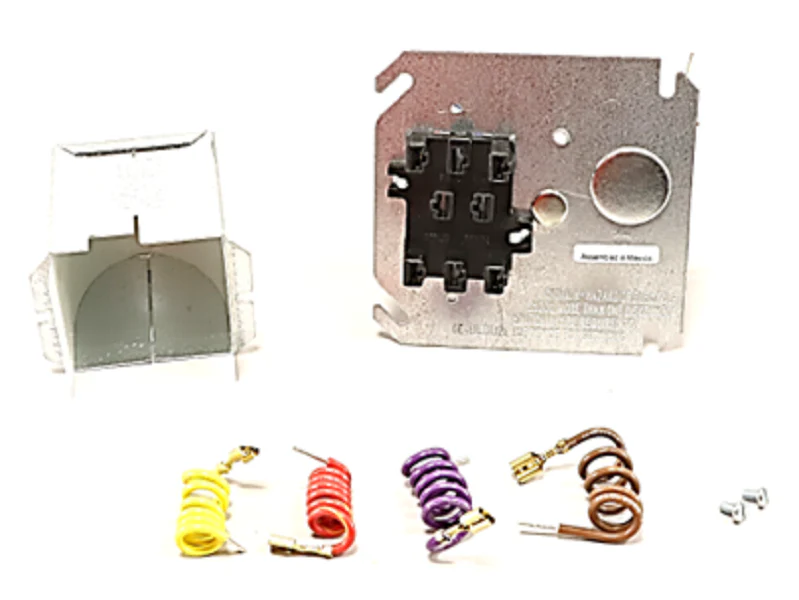

Resideo Q633A1007 Relay Receptacle
The Resideo Q633A1007 Relay Receptacle is a critical interface component for field-mounting switching relays in various HVAC control applications. Designed for secure installation on a standard 4x4 inch junction box, this plate-mounted assembly simplifies wiring harness management by providing eight color-coded leadwires for rapid termination. This receptacle is compatible with Resideo R4222 and R8222 series relays, enabling seamless integration into fan center configurations or commercial HVAC control systems. The heavy-duty mounting plate and included cover ensure electrical connections remain protected while maintaining a professional finish. Technicians rely on the Q633A1007 for low voltage control transitions, particularly when retrofitting existing systems where modularity and serviceability are paramount. By utilizing this HVAC relay base, contractors reduce labor time and eliminate the need for custom soldering or complex field-fabricated junction box mounting solutions, ensuring reliable operation in demanding environments.
Key Benefits for Technicians- Universal 4x4 Mounting: Fits standard square electrical boxes for efficient installation in residential or commercial settings.
- Pre-Wired Leadwires: Includes eight leadwires to expedite wiring connections and reduce potential for field errors.
- Modular Compatibility: Designed specifically for use with various switching relays, facilitating easy replacements without re-wiring the entire base.
- Complete Assembly: Ships with the necessary cover and receptacle to ensure code compliance and safety.
Which relays are compatible with the Q633A1007?
This receptacle is engineered to work with standard plug-in relays such as the R4222, R8222, and other equivalent HVAC relay types that utilize the same footprint.
Can this be used for high-voltage switching?
Yes, the receptacle is rated for line voltage applications, provided it is installed within a suitable 4x4 plate junction box and the installed relay meets the necessary load requirements.
Does it include the mounting hardware?
The unit includes the relay receptacle, cover, and leadwires; however, mounting screws for the 4x4 box are typically provided with the electrical box itself.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $49.60
-65%$49.60
$17.36Resideo Q633A1007 Relay Receptacle
