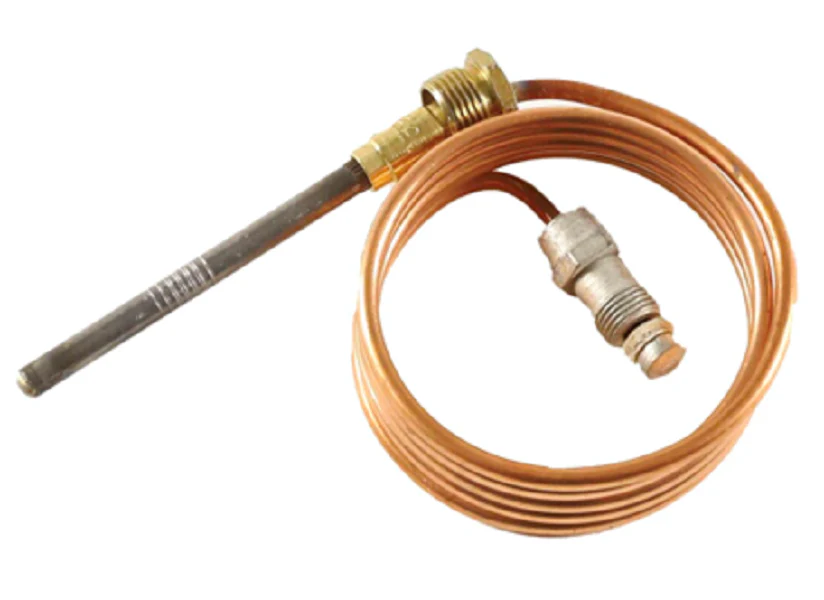

Resideo Q390A1061 Thermocouple
Maintain consistent pilot flame monitoring in high-demand residential and commercial gas-fired heating systems with the Resideo Q390A1061 Thermocouple. This heavy-duty thermocouple is designed for veteran contractors who require a reliable signal to the Pilotstat safety control power unit. Featuring a 36-inch lead length, it delivers a nominal 30mV voltage output, with a stable open circuit range of 26mV to 32mV to ensure the main burner gas valve remains engaged only when a safe pilot condition is detected.
The Q390A1061 is engineered for low-resistance performance, rated at just 0.02 Ohms to maximize millivolt transfer Efficiency. Built to endure extreme thermal cycling, the hot junction is rated up to 1400°F while the cold junction remains stable at 780°F. This universal replacement kit includes an 11/32-32 male nut connector, a push-in clip, and a universal adapter, making it highly compatible with Honeywell pilot burner models like the Q303, Q308, and Q314. Whether you are performing a routine furnace repair or a precision furnace flame sensor replacement, this component provides the rugged durability needed for standing pilot applications.
Key Benefits- Universal Compatibility: Includes a push-in clip and universal adapter for quick installation in various gas-fired heating appliances.
- High-Temperature Durability: Rated for a 1400°F hot junction, preventing premature failure in high-output pilot flames.
- Precise Safety Signal: Consistently generates the 30mV signal required to hold the safety magnet in standing pilot gas valves.
- Extended Reach: The 36-inch lead provides ample length for clean routing and management within the furnace cabinet.
- Is this compatible with LP (Propane) and Natural Gas? Yes, the Resideo Q390A1061 is designed for use in both Natural Gas and Liquid Propane standing pilot systems.
- What connection does this use? It features a standard 11/32-32 male nut for secure attachment to most Pilotstat and gas control power units.
- Can I use this for millivolt gas valves? While this generates a 30mV signal for safety shutoff, a thermopile (750mV) is typically required for millivolt-operated thermostats and main valves.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
