Resideo Q390A1053 Thermocouple
The Resideo Q390A1053 Thermocouple is a high-performance 30mV sensing element designed for standing pilot gas-fired heating systems. This professional-grade 30-inch lead component is engineered to generate a reliable DC signal by sensing the pilot flame, ensuring the Pilotstat safety control power unit remains engaged. This furnace thermocouple replacement is a drop-in solution for legacy parts, specifically replacing the 410-539-000 and Q309A2150 models. With a precise open circuit output range of 26mV to 32mV and a nominal resistance of 0.02 Ohms, it provides stable millivoltage even under extreme conditions, featuring a hot junction rating of 1400°F and a cold junction rating of 780°F.

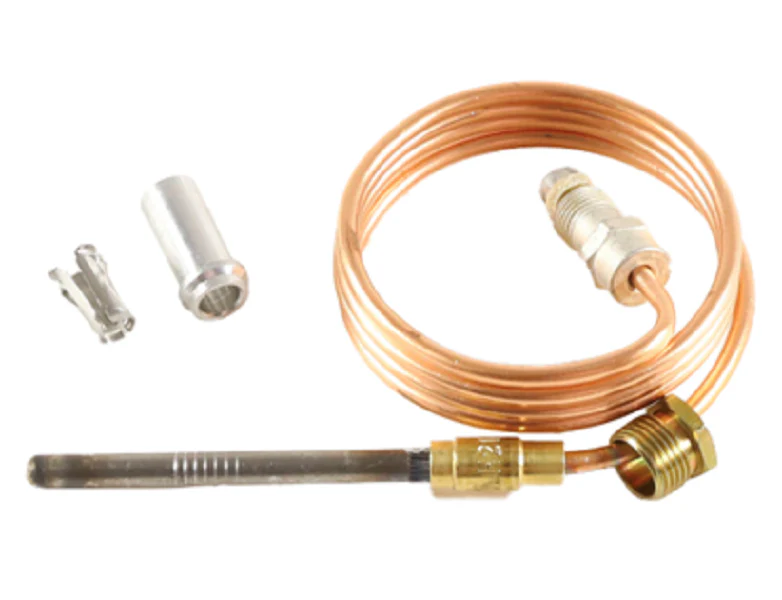

To ensure a fast and secure field installation, this universal thermocouple includes a 11/32-32 male connector nut, a universal adapter, and a push-in clip. It is compatible with a wide array of Resideo/Honeywell pilot burners, including the Q303, Q308, Q314, and Q327 series. Technicians can rely on this robust standing pilot thermocouple to maintain system uptime and safety in residential and commercial applications where precise pilot flame detection is required.
Key Benefits- Direct Replacement Compatibility: Specifically designed to replace 410-539-000 and Q309A2150 components without modification.
- Optimized Signal Strength: Delivers a consistent 30mV voltage output to prevent nuisance pilot dropouts.
- Hardware Versatility: Comes equipped with both an adapter and push-in clip to accommodate varied burner mounting styles.
- Thermal Durability: Rated for high-temperature service with a 1400°F hot junction limit for long-term reliability in the combustion chamber.
- Standardized Fit: Features the industry-standard 11/32-32 male connector nut for seamless integration into existing gas valves.
- How do I confirm if my open circuit output is sufficient? A healthy Q390A1053 should measure between 26mV and 32mV when disconnected from the gas valve; if the output falls significantly below this, the pilot flame may not be properly engulfing the sensor tip.
- Will this work with millivolt gas valves from other manufacturers? Yes, the 11/32-32 nut and universal adapter ensure compatibility with most standard Pilotstat-style safety controls.
- What causes a thermocouple to fail prematurely? High resistance often stems from soot buildup or improper flame impingement; ensure the sensor is clean and properly positioned within the pilot flame.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
