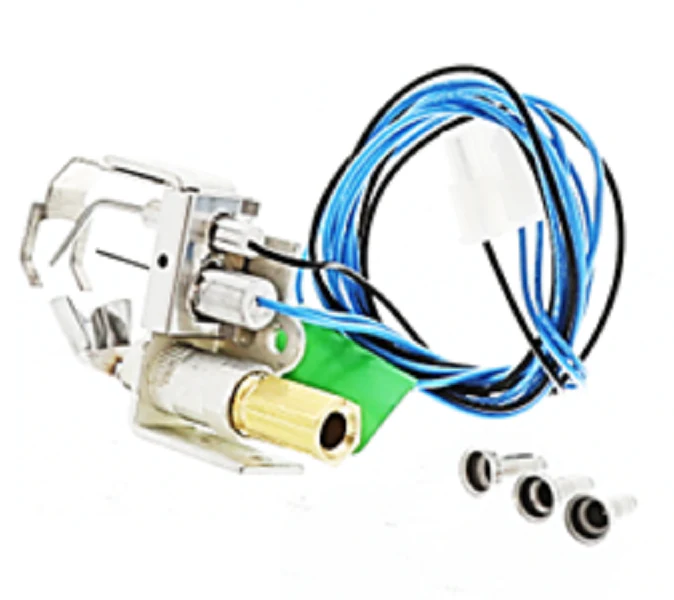

Resideo Q3450C2092 Pilot Assembly
The Resideo Q3450C2092 is a critical replacement SmartValve pilot assembly engineered for high-efficiency intermittent pilot ignition systems. This natural gas pilot burner features an integrated flame sensor and silicon carbide igniter designed specifically for R8222 and SV9500/SV9600 series valve bodies. When troubleshooting HVAC pilot outages or erratic gas furnace ignition, this assembly provides a direct-fit solution to restore reliable rectification signals to the control module. The Q3450C2092 includes a pre-installed pilot orifice and 1/4-inch compression fitting, ensuring a vacuum-tight seal during installation. Its rugged construction is built to withstand high-temperature combustion environments, maintaining consistent pilot flame geometry for optimal burner crossover. For technicians servicing residential or light commercial equipment, utilizing this genuine OEM Honeywell Resideo part ensures component compatibility and prevents common SmartValve troubleshooting codes related to failed flame sensing or weak ignition cycles.
Project Advantages- Compatible with SV9501, SV9502, and SV9602 SmartValve series for broad application versatility.
- Includes a durable silicon carbide hot surface igniter for rapid, reliable gas ignition in cold-start conditions.
- Factory-calibrated natural gas orifice ensures precise BTU output for stable pilot operation.
- Integrated flame rod provides high-sensitivity feedback to the controller to eliminate nuisance lockouts.
What are the symptoms of a failing Q3450C2092 assembly?
Common indicators include the igniter failing to glow, the pilot lighting but dropping out immediately due to poor flame rectification, or hairline cracks in the ceramic insulator causing an electrical short.
Does this assembly include the replacement wiring harness?
This model features the standard plug-in connector for SmartValve systems; however, the main wiring harness from the valve is typically reused unless it shows signs of thermal degradation.
Can this unit be converted for Liquid Propane (LP) applications?
This specific SKU is configured for natural gas. For LP conversions, you must swap the pilot orifice to the appropriate BTU rating to ensure safe and stable combustion.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
