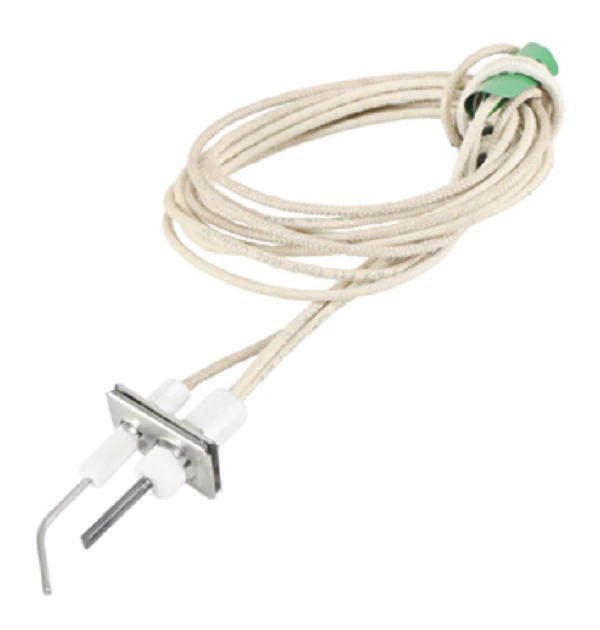

Resideo Q3400A1032 Ignitor
The Resideo Q3400A1032 is a high-performance hot surface igniter (HSI) and flame rod assembly designed specifically for integration with SmartValve systems. This field-replacement unit is the professional standard for servicing Q3450, Q3480, and Q3620 pilot burners, ensuring precise ignition and reliable flame rectification in residential and commercial gas-fired applications. Rated for a pilot output of 1000 BTUH, the assembly features a durable ceramic insulator and a high-temperature flame rod tip capable of withstanding operating environments up to 1800°F (982°C). The 30-inch high-temperature lead wires provide the necessary reach for various cabinet configurations, allowing for a seamless drop-in installation without the need for harness modifications. By utilizing advanced silicon nitride or specialized ceramic construction, this replacement igniter-sensor delivers rapid heat-up times and consistent flame sensing, which is critical for the safe operation of SV9500 and SV9600 series ignition modules. Contractors trust this OEM-spec component to restore system timing and prevent nuisance lockouts caused by degraded electrodes or carbon-fouled sensors.
Key Benefits:
- Compatible with Honeywell SmartValve SV9500 and SV9600 series gas controls.
- Direct field replacement for legacy Q3450, Q3480, and Q3620 pilot burner models.
- Equipped with 30-inch high-temperature leads for versatile routing and easy terminal connection.
- High-quality silicon nitride/ceramic construction ensures rapid 120V ignition and durable service life.
- Integrated flame rod assembly provides accurate microamp signals for reliable flame verification.
Common Questions:
Does this assembly include the pilot burner bracket?
No, the Q3400A1032 is the replacement igniter and flame rod assembly only. It is designed to slide into your existing Q3450 or Q3480 pilot burner housing.
Can I use this for a 24V or 120V system?
This specific HSI pilot burner component is engineered for use with SmartValve systems. While the valve operates on 24V, the igniter itself is built to handle the specific voltage requirements delivered by the SV9500/SV9600 ignition circuit.
Why is my SmartValve failing to ignite even with a new igniter?
If the Resideo Q3400A1032 is glowing but the main burner doesn't fire, check the flame sensor side of the assembly for proper grounding or check if the SmartValve itself is receiving the proper sequence of operation signals.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $108.23
-65%$108.23
$37.88Resideo Q3400A1032 Ignitor
The Resideo Q3400A1032 is a high-performance hot surface igniter (HSI) and flame rod assembly designed specifically for integration with SmartValve systems. This field-replacement unit is the professional standard for servicing Q3450, Q3480, and Q3620 pilot burners, ensuring precise ignition and reliable flame rectification in residential and commercial gas-fired applications. Rated for a pilot output of 1000 BTUH, the assembly features a durable ceramic insulator and a high-temperature flame rod tip capable of withstanding operating environments up to 1800°F (982°C). The 30-inch high-temperature lead wires provide the necessary reach for various cabinet configurations, allowing for a seamless drop-in installation without the need for harness modifications. By utilizing advanced silicon nitride or specialized ceramic construction, this replacement igniter-sensor delivers rapid heat-up times and consistent flame sensing, which is critical for the safe operation of SV9500 and SV9600 series ignition modules. Contractors trust this OEM-spec component to restore system timing and prevent nuisance lockouts caused by degraded electrodes or carbon-fouled sensors.
Key Benefits:
- Compatible with Honeywell SmartValve SV9500 and SV9600 series gas controls.
- Direct field replacement for legacy Q3450, Q3480, and Q3620 pilot burner models.
- Equipped with 30-inch high-temperature leads for versatile routing and easy terminal connection.
- High-quality silicon nitride/ceramic construction ensures rapid 120V ignition and durable service life.
- Integrated flame rod assembly provides accurate microamp signals for reliable flame verification.
Common Questions:
Does this assembly include the pilot burner bracket?
No, the Q3400A1032 is the replacement igniter and flame rod assembly only. It is designed to slide into your existing Q3450 or Q3480 pilot burner housing.
Can I use this for a 24V or 120V system?
This specific HSI pilot burner component is engineered for use with SmartValve systems. While the valve operates on 24V, the igniter itself is built to handle the specific voltage requirements delivered by the SV9500/SV9600 ignition circuit.
Why is my SmartValve failing to ignite even with a new igniter?
If the Resideo Q3400A1032 is glowing but the main burner doesn't fire, check the flame sensor side of the assembly for proper grounding or check if the SmartValve itself is receiving the proper sequence of operation signals.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
