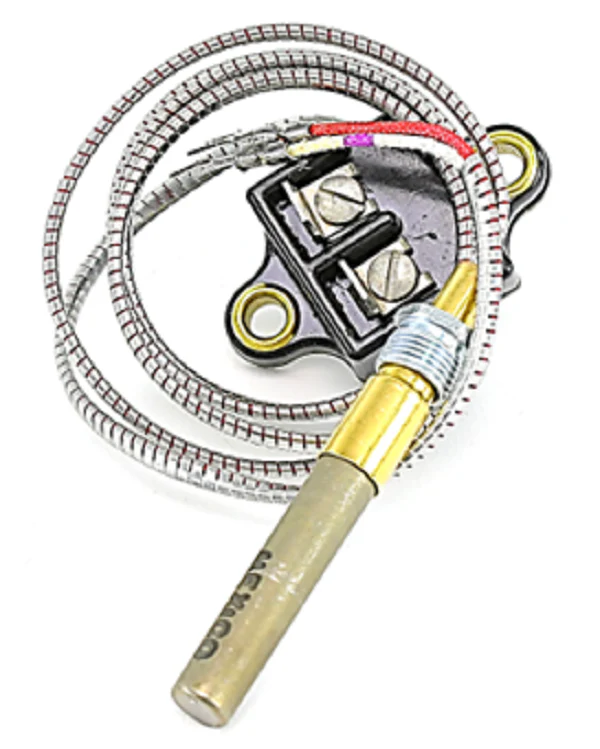

Resideo Q313B1005 Replacement Thermopile Generator
The Resideo Q313B1005 Replacement Thermopile Generator is a critical component for maintaining reliable pilot ignition in self-powered gas heating systems. Engineered for high-output performance, this 750mV thermopile provides an open circuit voltage range of 600mV to 750mV, ensuring sufficient millivoltage to operate the gas valve without external power. Featuring a 35-inch lead length and spade terminal connections, this generator is designed for seamless integration into existing pilot burner assemblies. With a nominal internal resistance of 2.89 ohms, it maintains consistent current flow under typical operating temperatures. This model includes a 1/2" attaching nut and a specialized junction box, facilitating a series hookup with high limit switches for enhanced system safety. For service technicians performing millivolt heating system repair, the Q313B1005 offers the precise electrical characteristics required for compatibility with Honeywell and Resideo hardware, preventing nuisance shutdowns caused by weak pilot signals.
Key Benefits for Technicians- Optimized Millivolt Output: Delivers a consistent 750mV nominal output to ensure reliable gas valve actuation in self-powered gas furnaces and boilers.
- Durable Construction: Built to withstand high-temperature pilot flames, reducing the frequency of replacement cycles in the field.
- Simplified Installation: The 35" leads and included 1/2" nut allow for flexible routing and secure mounting in various burner configurations.
- Safety Integration: Features a dedicated junction box for easy wiring of series safety circuits and high-limit controls.
What causes a thermopile to drop below the required 600mV output?
Soot buildup on the thermopile sensor or improper pilot flame impingement are the most common causes. If the output remains low after cleaning the pilot orifice, the internal junctions of the powerpile generator have likely degraded, requiring a replacement.
Can this 750mV generator replace a standard 250mV thermocouple?
No. A 750mV thermopile and a 250mV thermocouple are not interchangeable. This unit is specifically for millivolt control systems that power the gas valve coil entirely from the heat of the pilot flame.
Is the junction box required for all installations?
The junction box is utilized when the system requires a series connection to a high-limit safety switch. If your specific appliance does not use a high-limit interface at the pilot, the leads may be connected directly to the operator terminals.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $95.27
-65%$95.27
$33.34Resideo Q313B1005 Replacement Thermopile Generator
The Resideo Q313B1005 Replacement Thermopile Generator is a critical component for maintaining reliable pilot ignition in self-powered gas heating systems. Engineered for high-output performance, this 750mV thermopile provides an open circuit voltage range of 600mV to 750mV, ensuring sufficient millivoltage to operate the gas valve without external power. Featuring a 35-inch lead length and spade terminal connections, this generator is designed for seamless integration into existing pilot burner assemblies. With a nominal internal resistance of 2.89 ohms, it maintains consistent current flow under typical operating temperatures. This model includes a 1/2" attaching nut and a specialized junction box, facilitating a series hookup with high limit switches for enhanced system safety. For service technicians performing millivolt heating system repair, the Q313B1005 offers the precise electrical characteristics required for compatibility with Honeywell and Resideo hardware, preventing nuisance shutdowns caused by weak pilot signals.
Key Benefits for Technicians- Optimized Millivolt Output: Delivers a consistent 750mV nominal output to ensure reliable gas valve actuation in self-powered gas furnaces and boilers.
- Durable Construction: Built to withstand high-temperature pilot flames, reducing the frequency of replacement cycles in the field.
- Simplified Installation: The 35" leads and included 1/2" nut allow for flexible routing and secure mounting in various burner configurations.
- Safety Integration: Features a dedicated junction box for easy wiring of series safety circuits and high-limit controls.
What causes a thermopile to drop below the required 600mV output?
Soot buildup on the thermopile sensor or improper pilot flame impingement are the most common causes. If the output remains low after cleaning the pilot orifice, the internal junctions of the powerpile generator have likely degraded, requiring a replacement.
Can this 750mV generator replace a standard 250mV thermocouple?
No. A 750mV thermopile and a 250mV thermocouple are not interchangeable. This unit is specifically for millivolt control systems that power the gas valve coil entirely from the heat of the pilot flame.
Is the junction box required for all installations?
The junction box is utilized when the system requires a series connection to a high-limit safety switch. If your specific appliance does not use a high-limit interface at the pilot, the leads may be connected directly to the operator terminals.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
