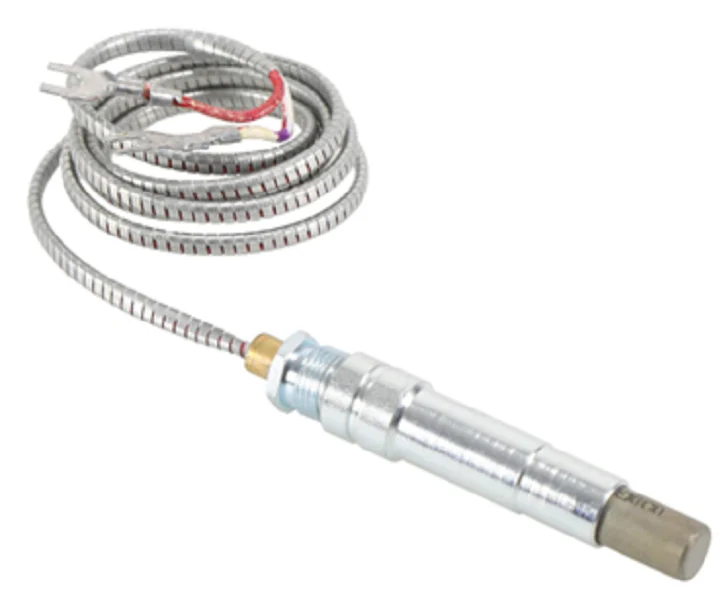

Resideo Q313A1402 Thermopile
The Resideo Q313A1402 is a robust 750 mV thermopile engineered for self-powered gas ignition systems and millivolt control circuits. As a veteran-grade millivolt generator, this pilot burner component utilizes a series of internal thermocouples to convert thermal energy from a standing pilot flame into the DC voltage required to hold the main gas valve open. This model features a 35-inch lead length and includes a PG9 adapter, providing the necessary reach and secure mounting for complex fireplace and boiler cabinet configurations. In the field, technicians rely on this part to service gas fireplace millivolt systems and standing pilot wall heaters where external electrical power is unavailable. Replacing a degraded powerpile generator with the Q313A1402 ensures stable millivolt output, preventing nuisance shutdowns and erratic valve chatter. When troubleshooting standing pilot heating systems, this assembly serves as a direct replacement to restore reliable safety circuit continuity and thermopile voltage integrity.
Key Benefits:- High-Output 750 mV Signal: Delivers consistent dc voltage to operate millivolt gas valves and thermostatic controllers.
- Extended 35-Inch Leads: Provides flexibility for wire routing in deep burner trays or large boiler housings.
- Integrated PG9 Adapter: Ensures a precise fit and proper depth for optimal heat absorption from the pilot flame.
- Versatile Compatibility: Designed for use in fireplaces, floor furnaces, and commercial water heaters utilizing millivolt tech.
- Self-Sufficient Operation: Eliminates the need for external transformers by generating power directly from the pilot burner.
- How do you test a Resideo Q313A1402 thermopile? Use a multimeter set to millivolts (DC); a healthy unit should read between 650mV and 750mV under no-load conditions when heated by a steady pilot flame.
- Will this work with 24V gas valves? No, this is specifically for 750mV millivolt systems; using it on a 24V circuit will not provide enough current to energize the solenoid.
- When should the PG9 adapter be used? Use the PG9 nut and clip when mounting the thermopile into a pilot bracket designed for threaded or snap-in sensor retention to ensure the hot junction is correctly positioned.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
